2020 XYZ CT65 LTY

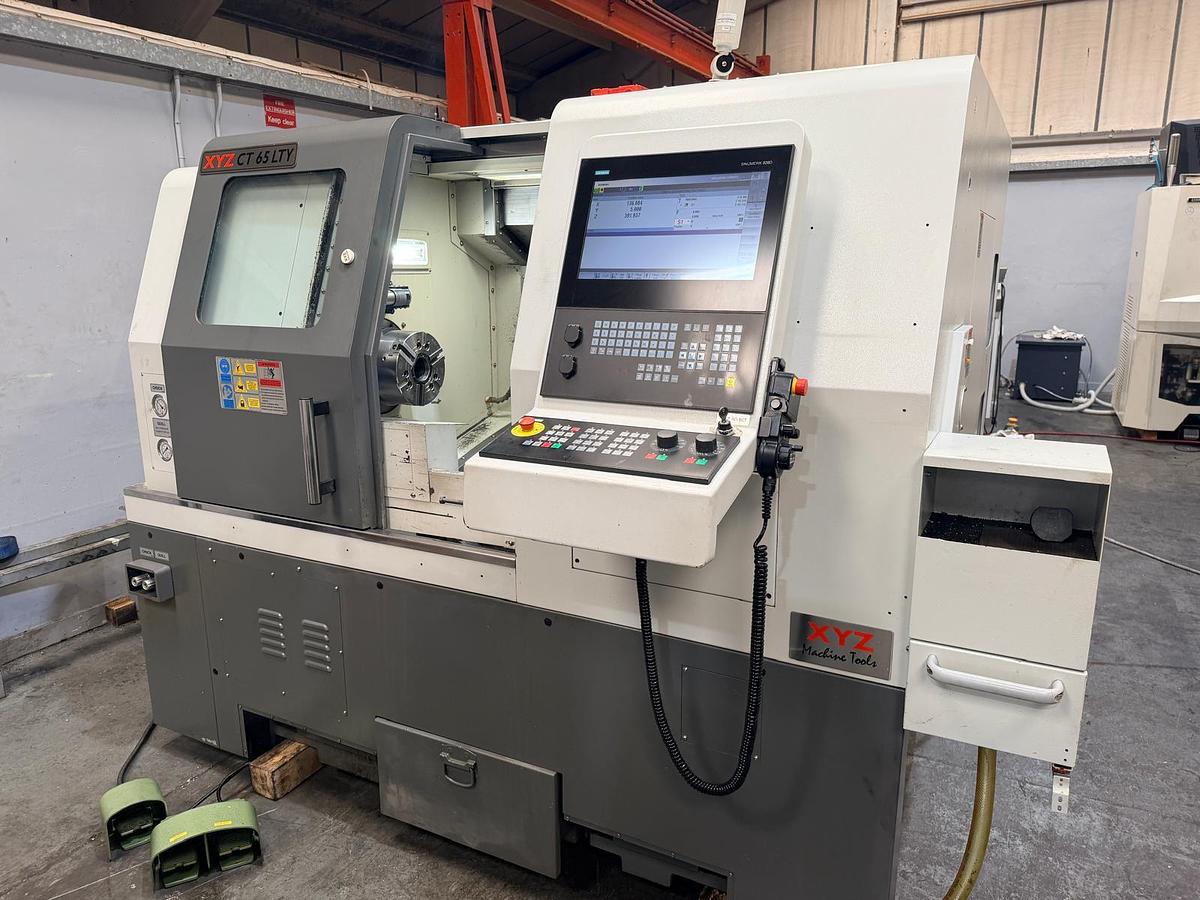

The XYZ Machine Tools XYZ CT65 LTY CNC turning centre in excellent condition with 12-station VDI 30 live tooling turret, Y-axis capability, hydraulic tailstock, chip conveyor, through-tool coolant, and automatic lubrication system. Designed for high-precision turning and mill-turn applications with bar capacity up to 65 mm.

Machine Specification:

CONTROL

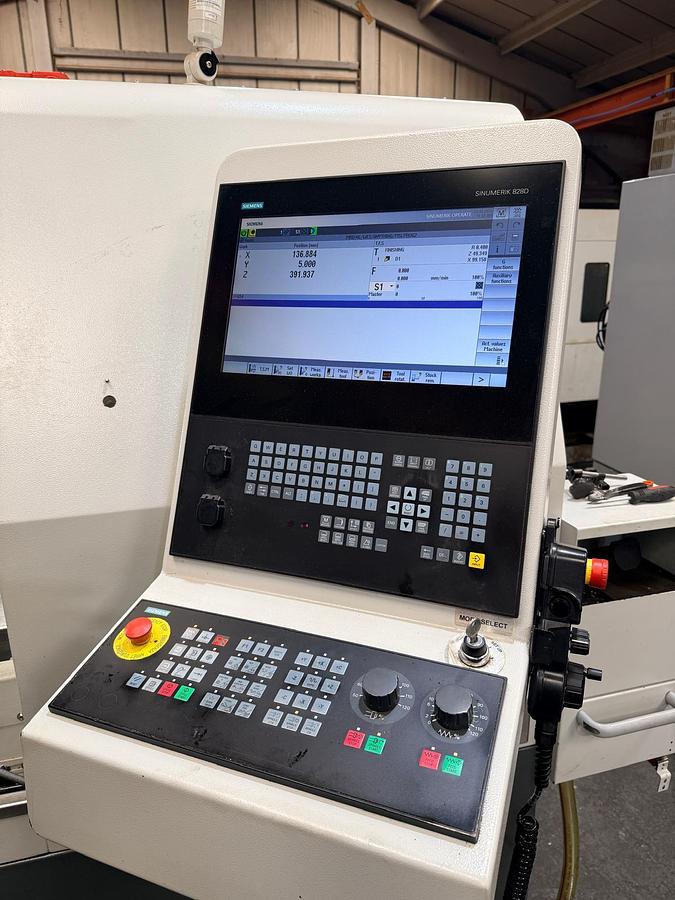

Seiemns 828D with Shopmill

Conversational and G-code programming capability

Electronic handwheel for setup and jogging

Fully interlocked safety guarding

CAPACITY

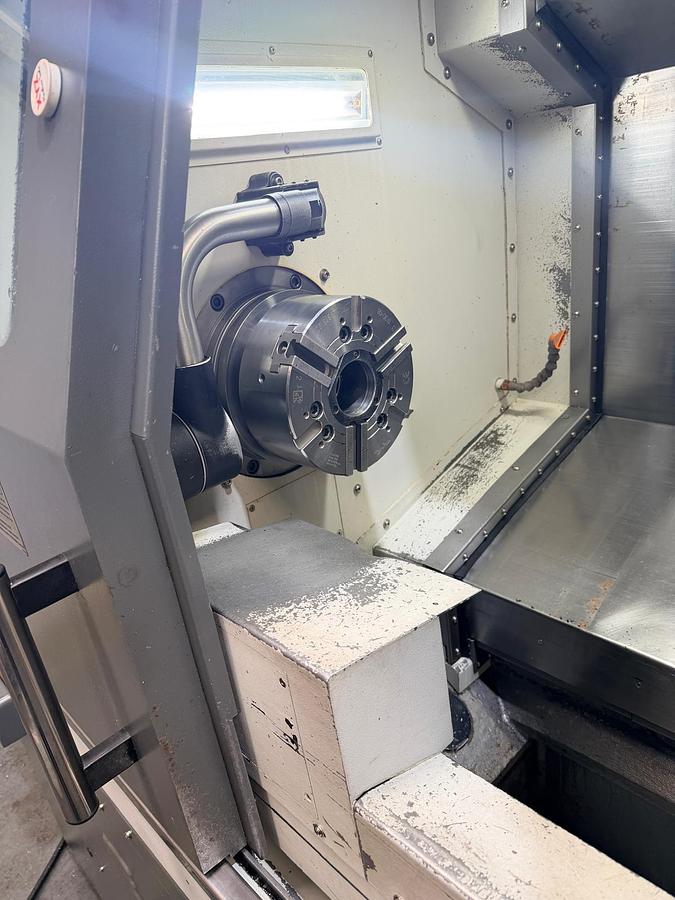

Chuck size (main spindle): 200 mm

Maximum swing: 400 mm

Maximum machining diameter: 220 mm

Maximum turning length: 490 mm

Maximum bar capacity: 65 mm

TRAVEL

Travel (X axis): 220 mm

Travel (Y axis): ±35 mm

Travel (Z axis): 500 mm

Rapid traverse rate: 20 m/min

Cutting feed rate: 0.01–10 m/min

MAIN SPINDLE

Spindle nose: A2-6

Maximum spindle speed: 4,500 rpm

Spindle bore: 76 mm

TURRET

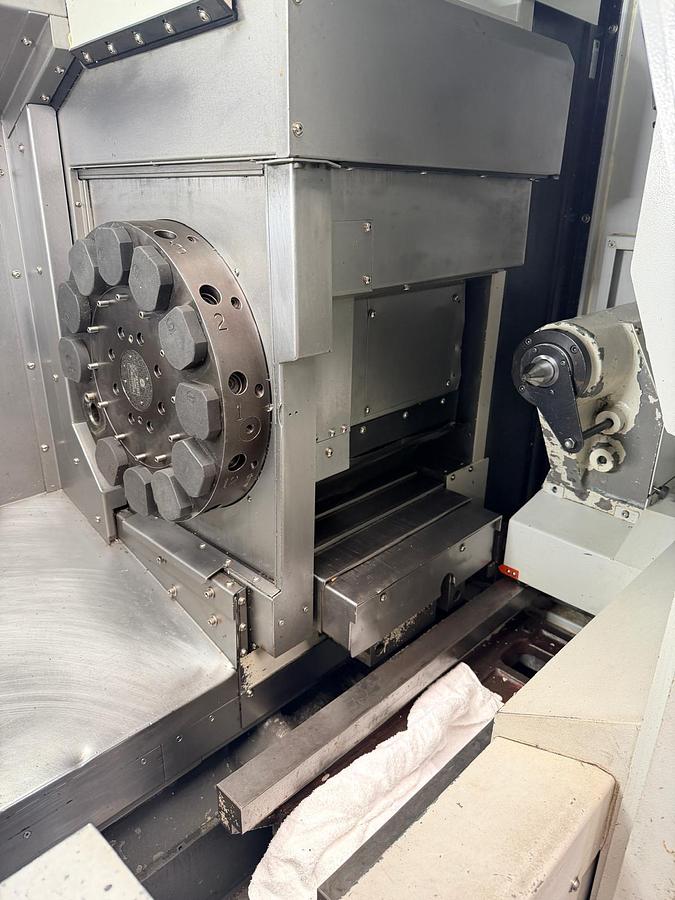

Turret type: 12-station VDI 30 power turret

Number of tools: 12

Turning tool size: 20 x 20 mm

Maximum boring bar diameter: 32 mm

Live tooling maximum speed: 4,500 rpm

TAILSTOCK

Tailstock taper: MT4

Quill diameter and travel: 60 mm x 90 mm

Hydraulic tailstock

Programmable hydraulic tailstock (optional)

COOLANT & LUBRICATION

Through-tool coolant system

Flood coolant system

Automatic lubrication system

Coolant tank capacity: 80 litres

Oil skimmer (optional)

Oil mist device (optional)

Coolant gun (optional)

ACCESSORIES

Chip conveyor and chip bin

Parts catcher system

Renishaw automatic tool setting arm

Air gun

Transformer

Leveling bolts and blocks

Tool kit

MACHINE SIZE

Machine dimensions (L x W x H): 3240 mm x 1788 mm x 1838 mm

Door opening width: 668 mm

Machine weight: 4,400 kg
