Hydrafeed X-Files-S

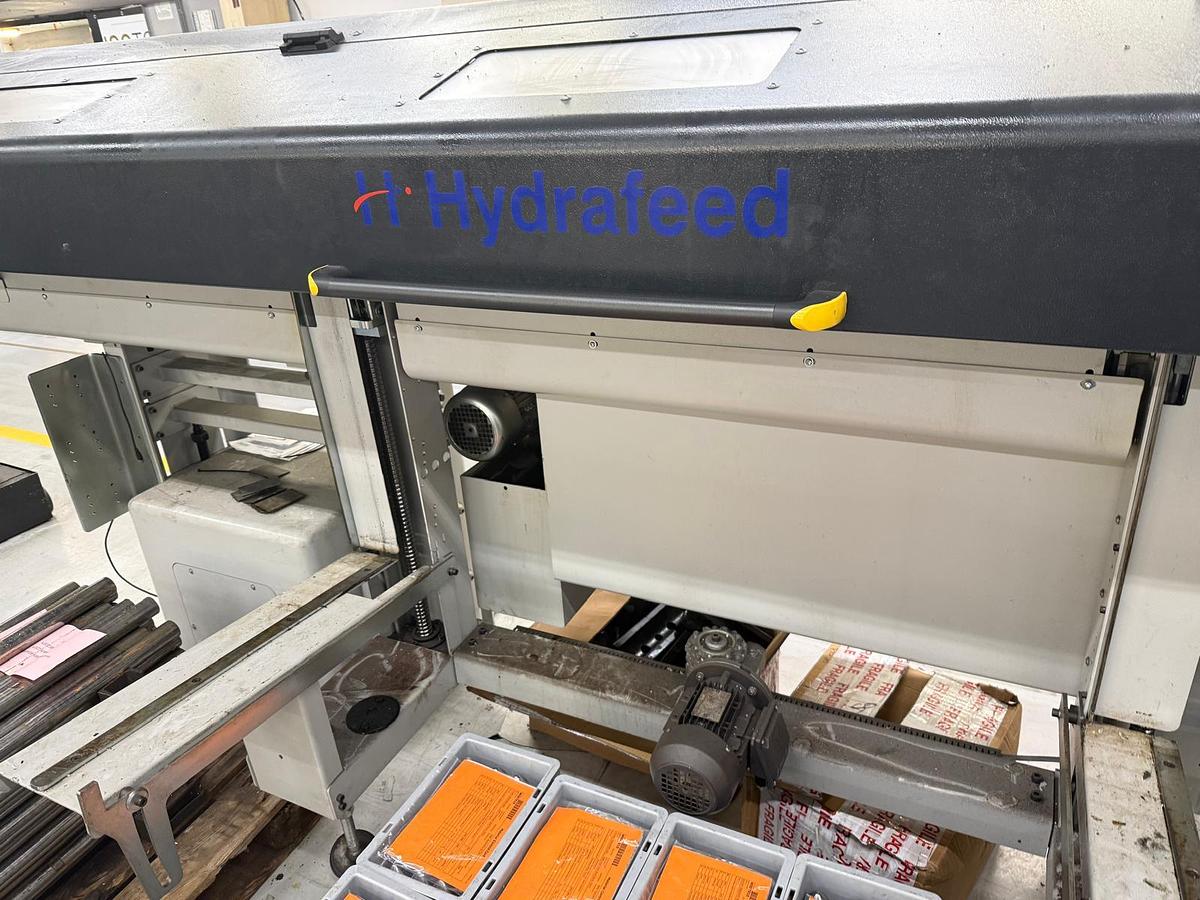

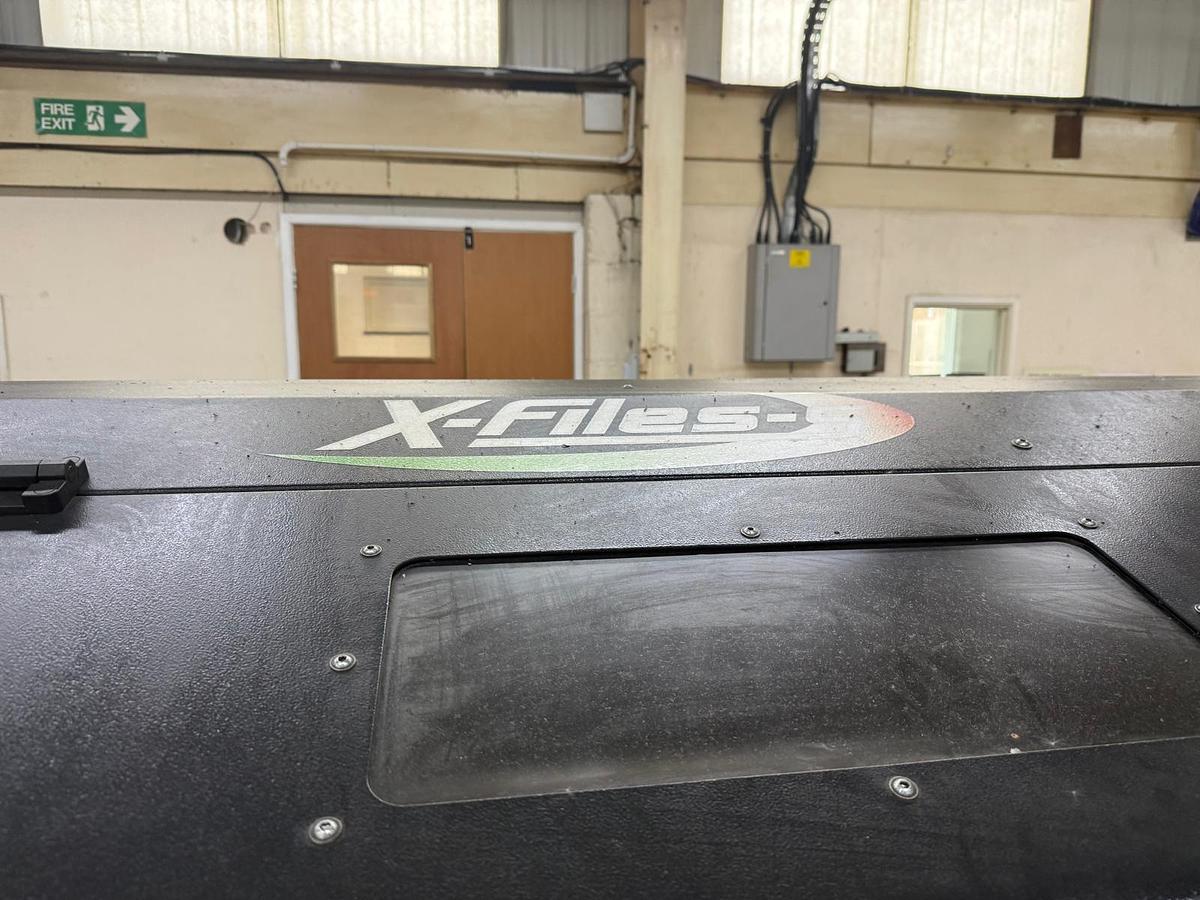

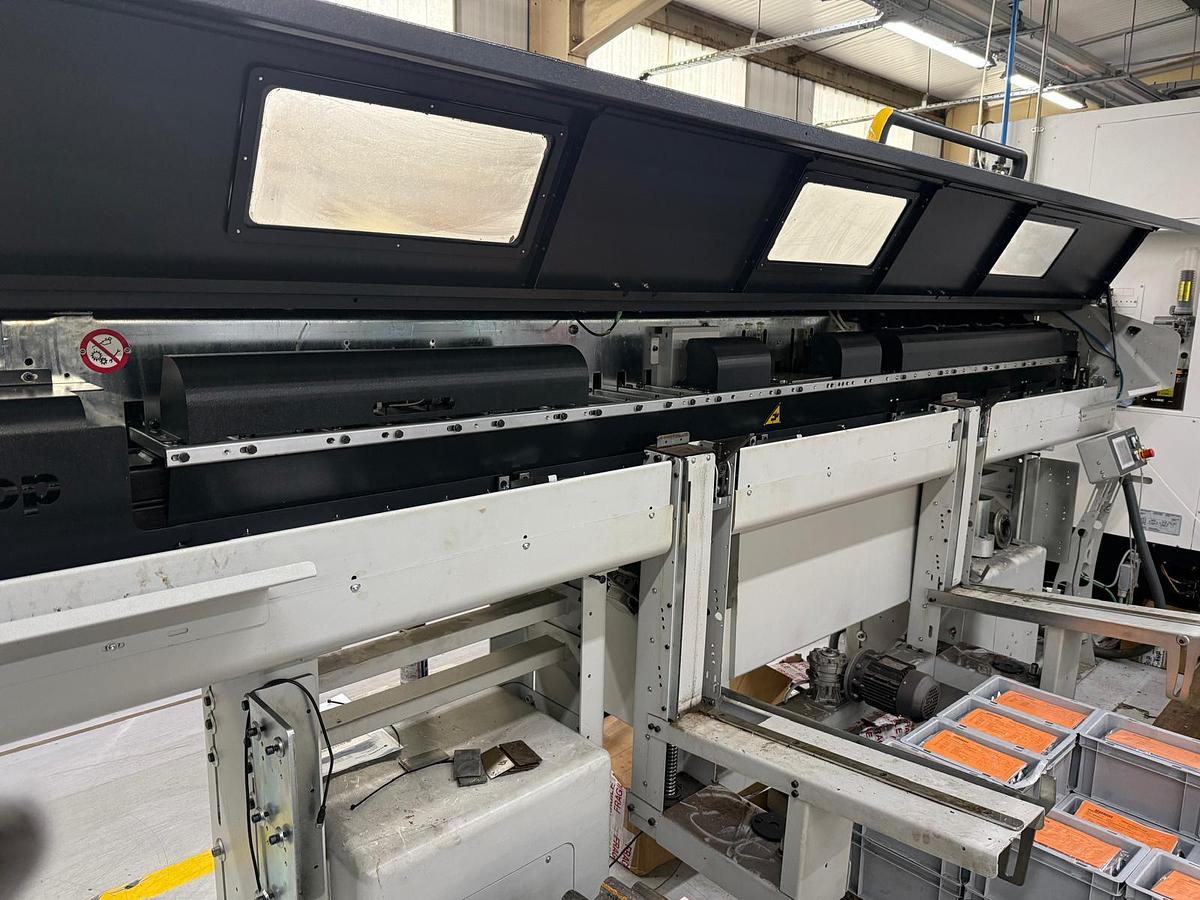

Used Hydrafeed X-Files-S, A full-length magazine Barfeed, the X-Files-s is suitable for fixed-head CNC turning centres and has a standard bar diameter range from 10mm to 100mm.

The self-adjusting guide channel supports the full range of bar diameters. Thanks to both this self-adjusting guide channel and the robust build of the Barfeed, bars are safely supported with no compromise to the RPM of the lathe.

Technical Specifications:

Bar Diameter Range: 10mm-100mm

Maximum Bar Length: 3.2m

Feeding Speed: 0-627mm/second

Guide Channel Lubricant: ISO VG 100

Required Air Pressure: 8 bar

Weight: 2,200-2,500kg

Voltage: 230V; 50Hz Three Phase
