2016 CMZ TL20-TM

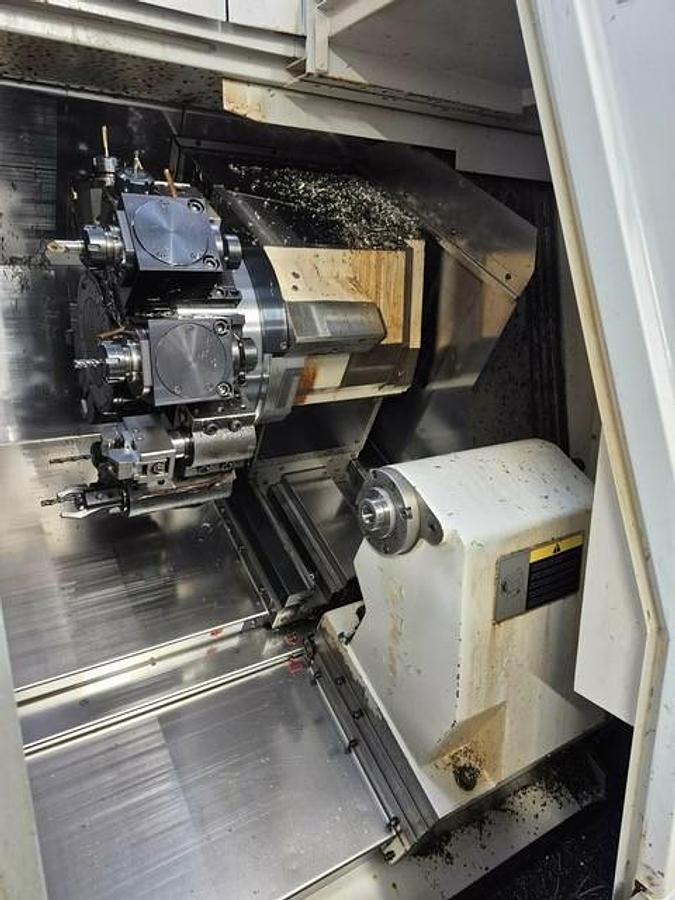

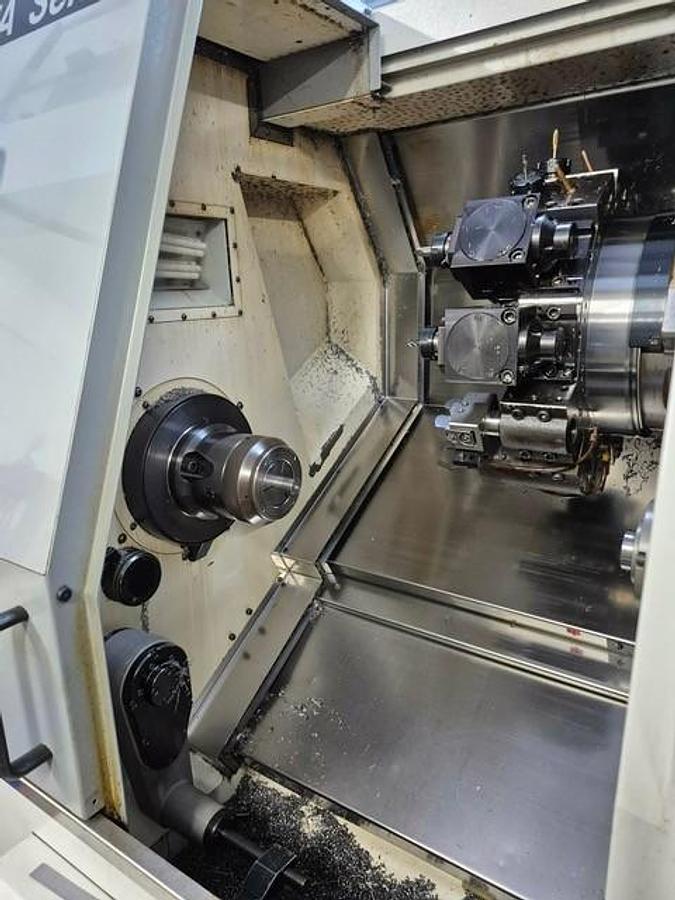

2016 CMZ TA-20TM Fanuc controlled, driven tool C-Axis CNC lathe with Ballscrew driven tailstock, direct drive 22KW main spindle, direct drive 15KW driven tool motor , parts catcher, swarf conveyor, tool arm and suite of driven and static tool holder. Super condition!

Specification

Control Type: Faniuc

Control Model 32i

Max. Turning Diameter 400mm

Max. Turning Length 640mm

Swing Over Bed 685 mm

Max Turning Dia: 510mm

Spindle Bore: 73mm

Bar Capacity 66 mm

Spindle Nose BoreA2-6

Spindle Speed 4,000 RPM

Main Spindle Power 22KW

Driven Tool Motor Power 15KW

Turret Positions 12

Driven Station: 12

Driven Tool Speed 12,000 RPM

Machine Dimensions: 3500 X 1950 X 190mm

Machine Weight Approx. 5,500 kg

** More Photo's to follow once received**
