2017 XYZ SMX 5000

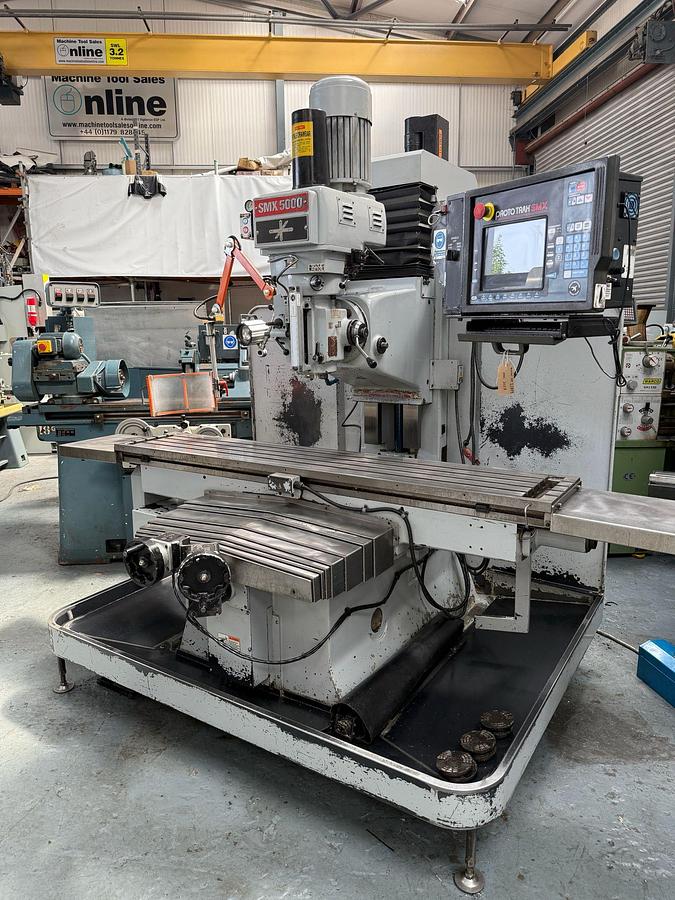

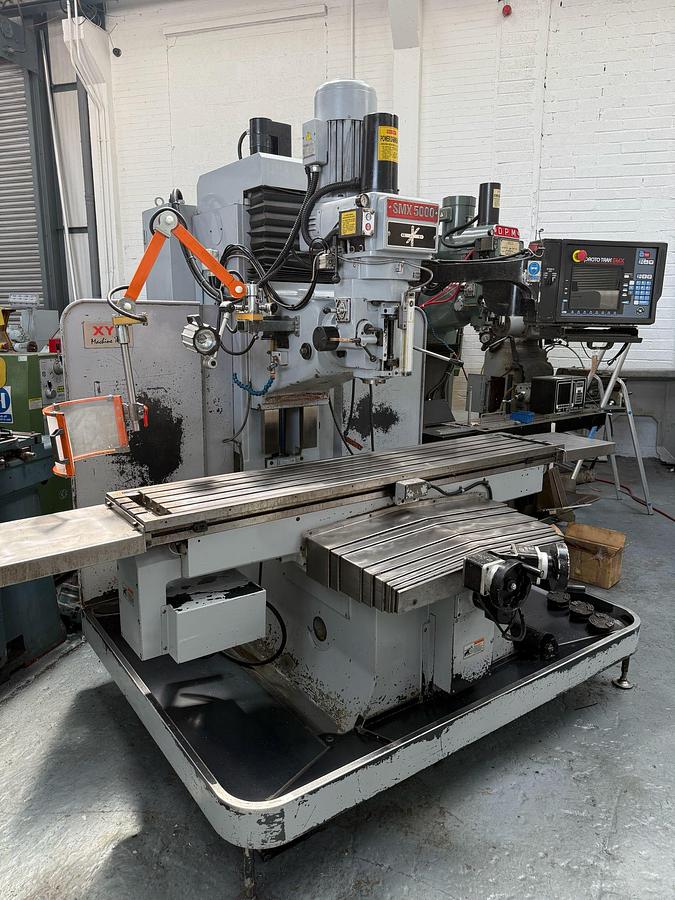

Used 2014 XYZ SMX 5000 CNC / Manual Bed Milling Machine in lovely condition. Supplied with ProtoTRAK SMX Control, Electronic Handwheels, TRAKing & DXF File Reader, Power Drawbar, Fully Programmable Spindle Drive and Custom-Made Splash Guards.

SPECIFICATION:

TRAVELS:

X Axis: 1,524 mm

Y Axis: 596 mm

Z Axis: 540 mm

Maximum Daylight Under Spindle: 610 mm

Quill Travel: 140 mm

TABLE:

Length: 1,930 mm

Width: 356 mm

T-Slot Width: 15.9 mm

Maximum Table Load: 850 kg

SPINDLE:

Motor Power: 5.75 kW (7.5 HP)

Speed Range: 40 - 5,000 rpm

Taper: ISO 40

Quill Diameter: 116 mm

Programmable Spindle Drive

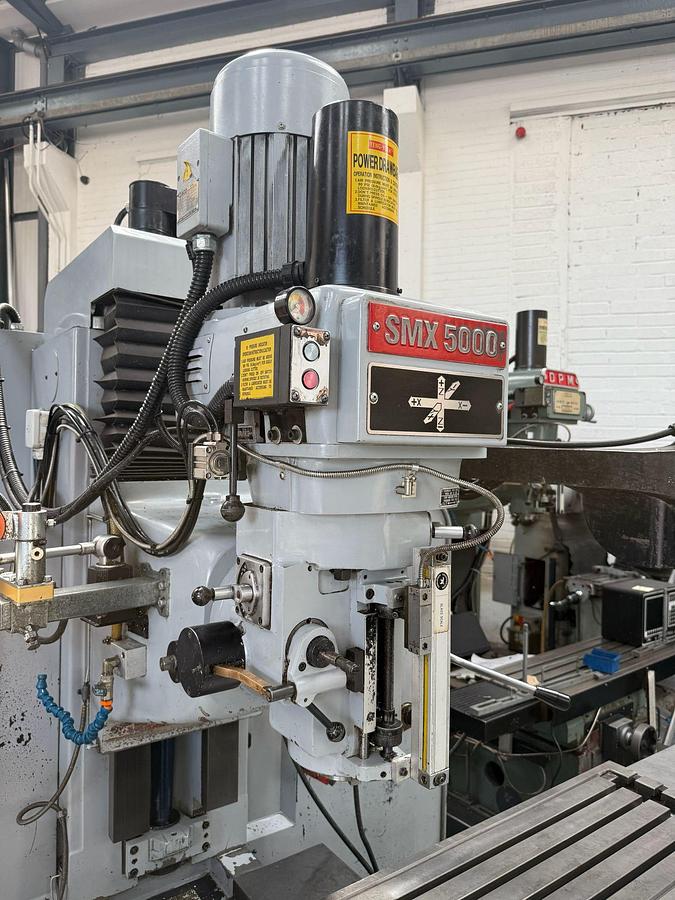

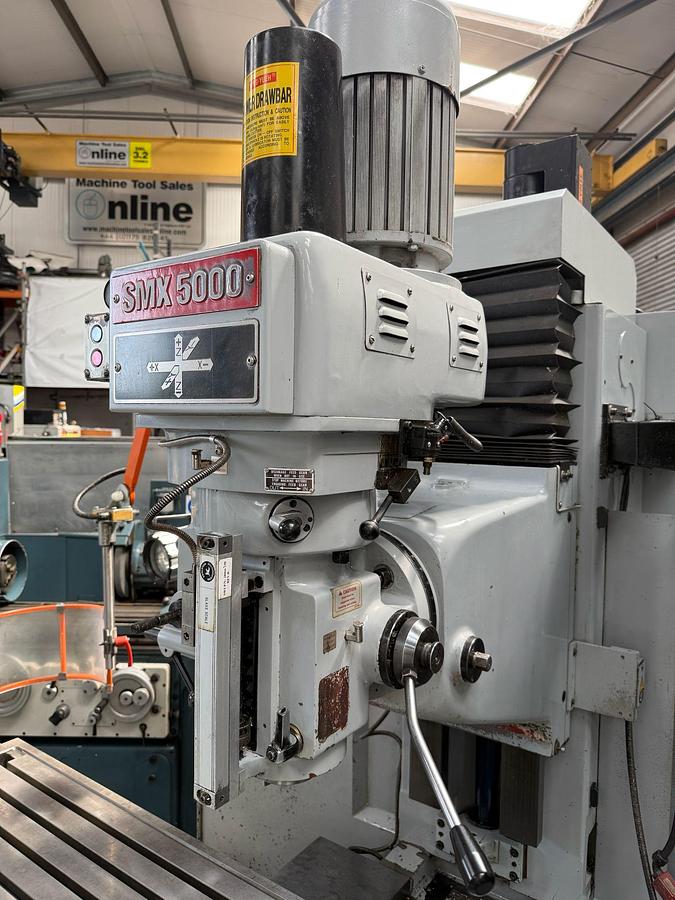

HEAD:

Head Tilt Left: 45°

Head Tilt Right: 45°

CONTROL:

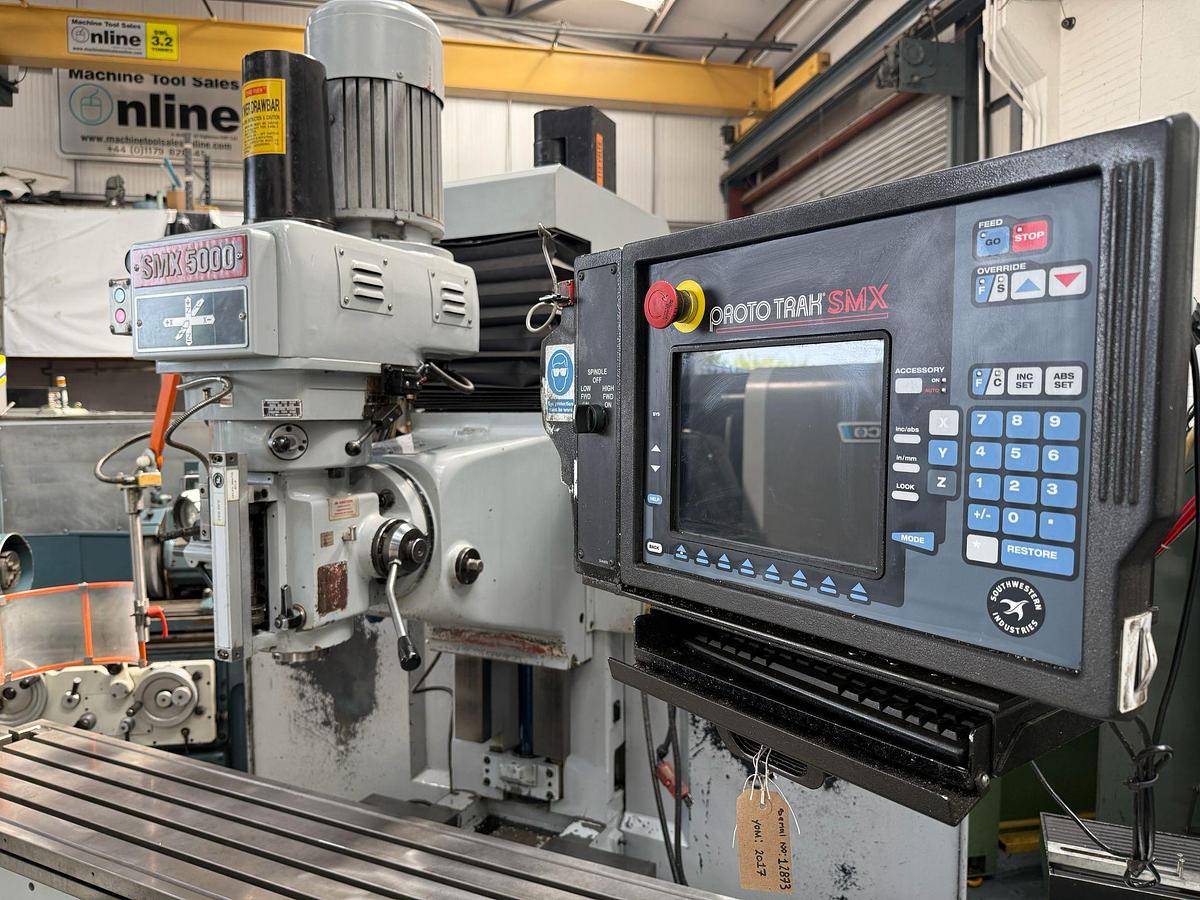

ProtoTRAK SMX Conversational CNC Control

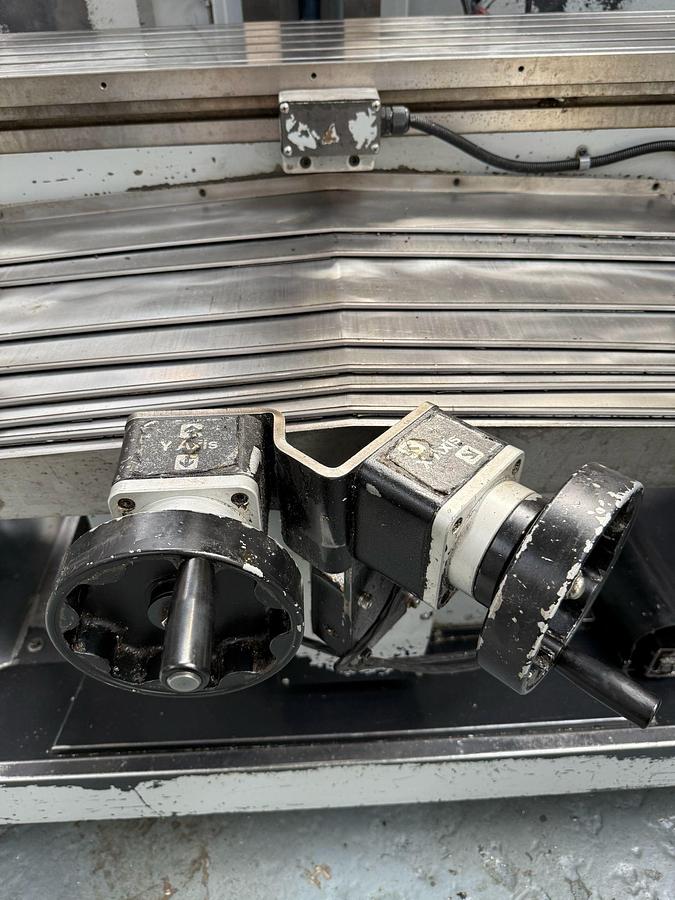

Electronic Handwheels

TRAKing Function

EQUIPMENT:

Power Drawbar

Splash Guards

GENERAL:

Machine Weight: 3,100 kg
