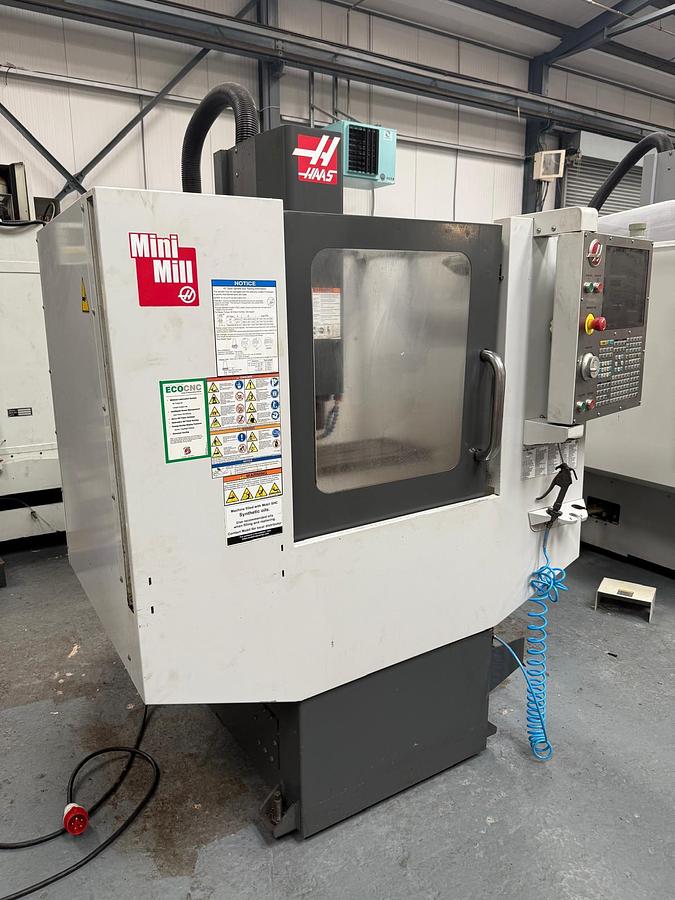

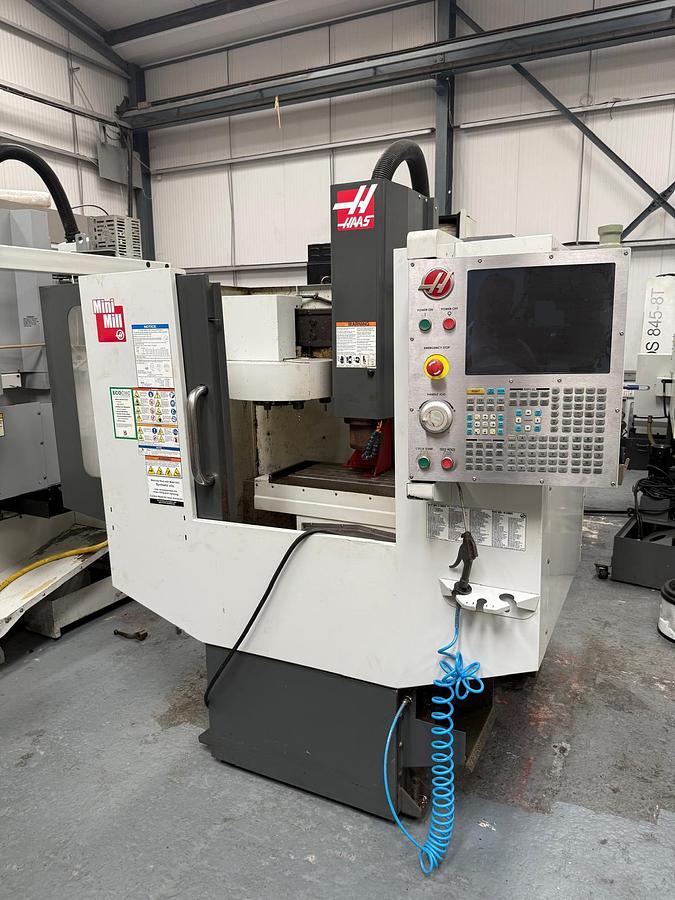

2011 HAAS Mini Mill

Used 2011 HAAS Mini Mill CNC Vertical Machining Centre, fitted with a 10-station automatic tool changer, 7.5 HP spindle, rigid tapping and coolant system. Supplied with tooling and manuals.

TABLE:

Table Size: 914 x 305 mm

Max Table Load Capacity: 227 kg

Distance from Spindle Nose to Table Surface: 100 mm (min) / 346 mm (max)

AXIS TRAVEL:

X-Axis Travel: 406 mm

Y-Axis Travel: 305 mm

Z-Axis Travel: 254 mm

SPINDLE:

Spindle Taper: CT40

Spindle Speed: Standard

Spindle Motor: 7.5 HP

FEEDRATES:

Rapid Traverse (X/Y/Z): 15 m/min

Max Programmable Feedrate: 13 m/min

TOOL CHANGER:

Type: Carousel Automatic Tool Changer

Capacity: 10 Stations

Max Tool Weight: 5.4 kg

Tool Change Time: 4.2 sec

GENERAL:

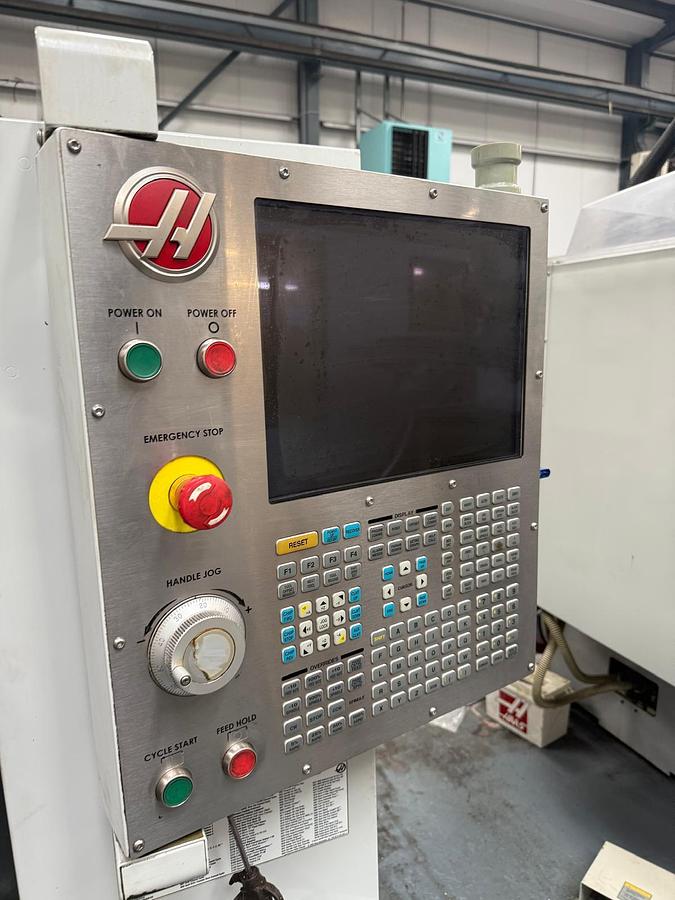

Machine Control: Haas CNC

Coolant System: Fitted

MACHINE DIMENSIONS:

Machine Weight: Approx. 1,814 kg

ADDITIONAL FEATURES:

10-Station Automatic Tool Changer

Rigid Tapping

Coolant System

40 Taper Spindle

Machine Manuals Included
