2020 MACH 710MM+

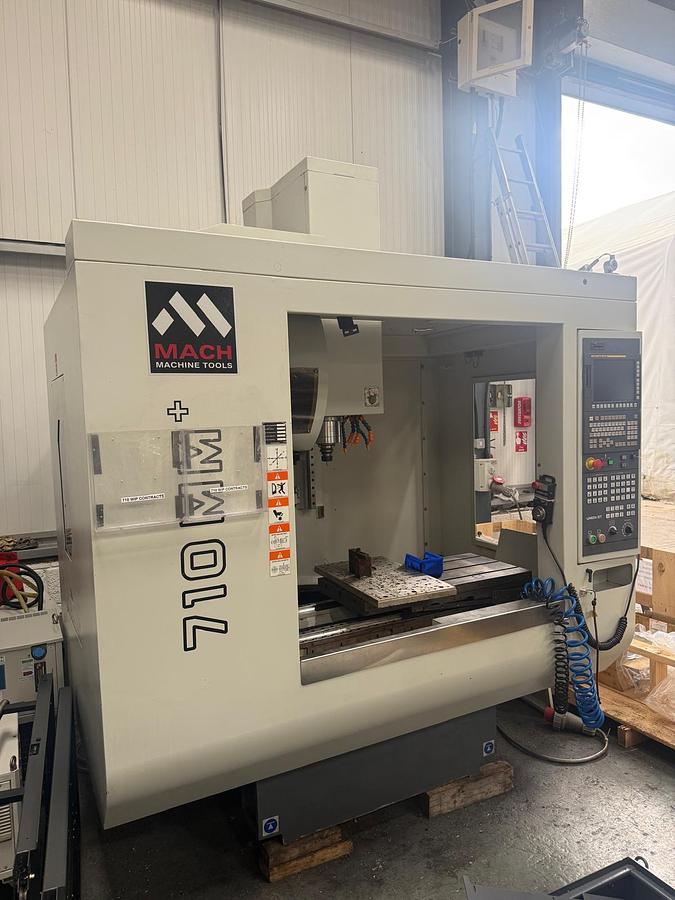

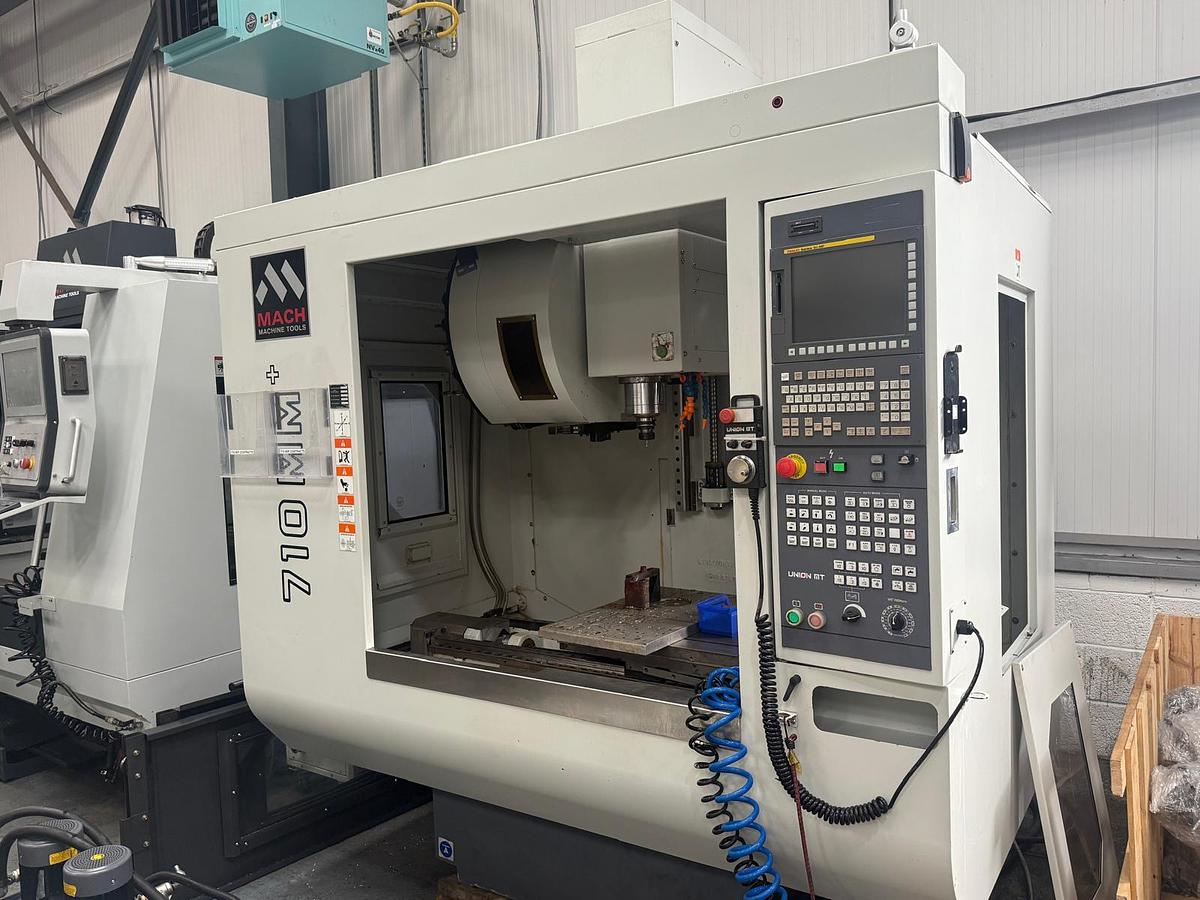

Used 2020 MACH 710MM+ photographed in preparation at our Bristol showroom.

The MACH 710MM+ might, at first glance, look like a traditional mini-mill in terms of its size but, look a bit closer, and it becomes clear that there’s nothing standard about this machine. Designed to deliver high accuracies, repeatability’s and exacting surface finishes, the MACH 710MM+ is a fast, flexible and high functioning VMC.

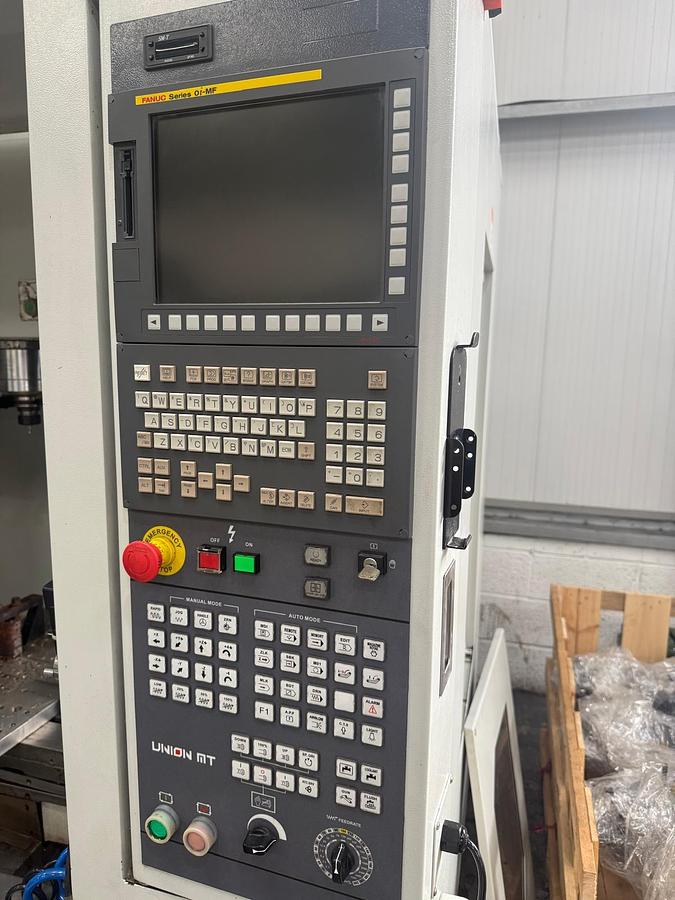

The machine is equipped with a powerful, high-torque direct-drive spindle (up to 13kW/12,000rpm), roller linear guides on all axes, and boasts impressive rapids (48m/min), and fast acceleration/deceleration rates (1.5g). The machine is supplied with the Fanuc 0iTB (with AiCC Graphic Display.

Specifications

Max spindle speed12,000 RPM

Spindle nose BBT40

Travel x/y/z 710 x 400 x 450

Rapid Travel X/Y/Z48 m/min

Table size 850 x 410

Machine weight 3,400 KG

Dimensions H 2500mm x W 2100mm x D 2891mm

HIGHLIGHTS

• Compact footprint.

• Fast (1.5G) acceleration/deceleration and 48m/min rapid rates (Z-, Y- and Z-axis).

• Rigid design and construction throughout minimises vibration and thermal displacement, and ensures high-accuracy machining, improved tool life and lower maintenance costs.

• Heavy-duty, high-precision oversize linear roller guideways and large diameter ball screws for smooth, responsive machining.

• Advanced direct-drive (high torque/high-speed) spindle technology.

• Reliable and high-efficiency ATC.

• Choice of controls - Fanuc or Siemens.

• 4th-axis prepared.
