MACH L1340

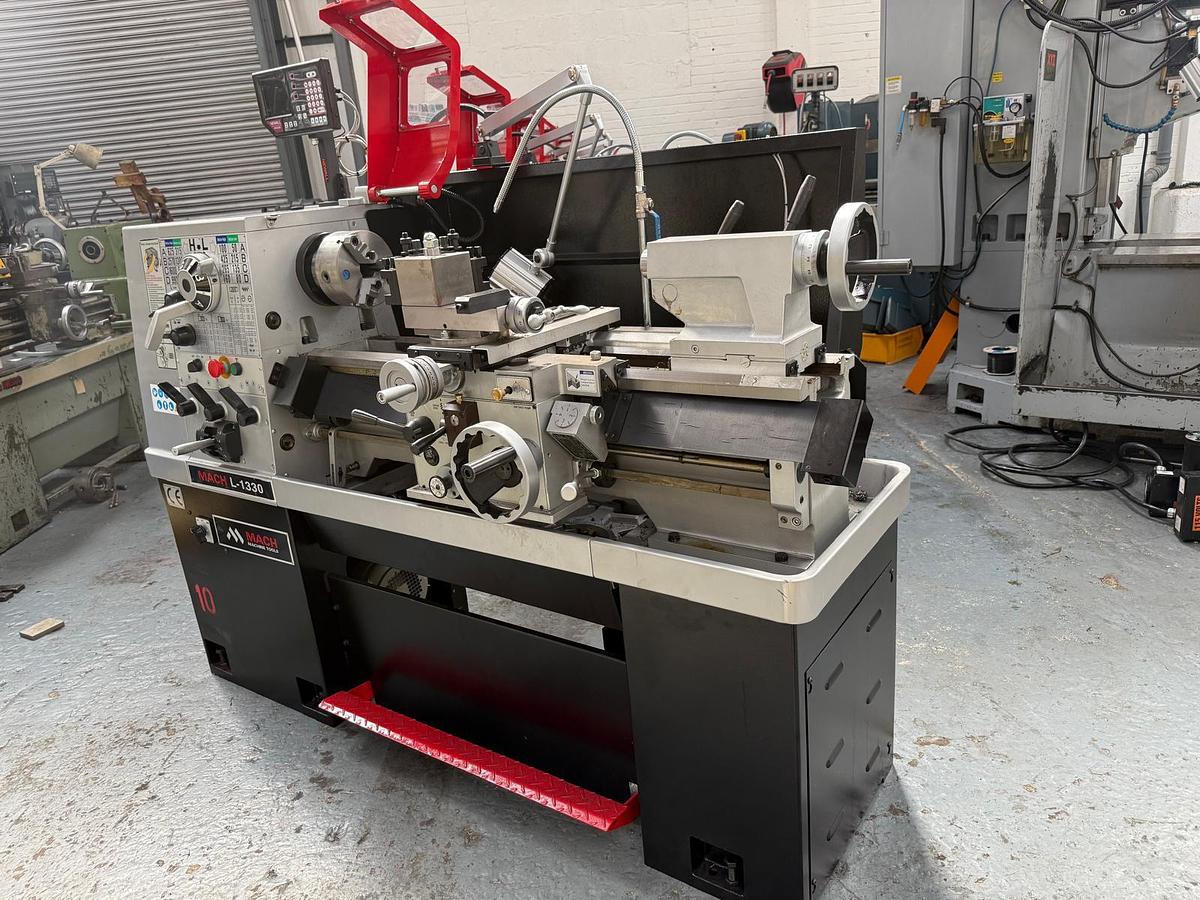

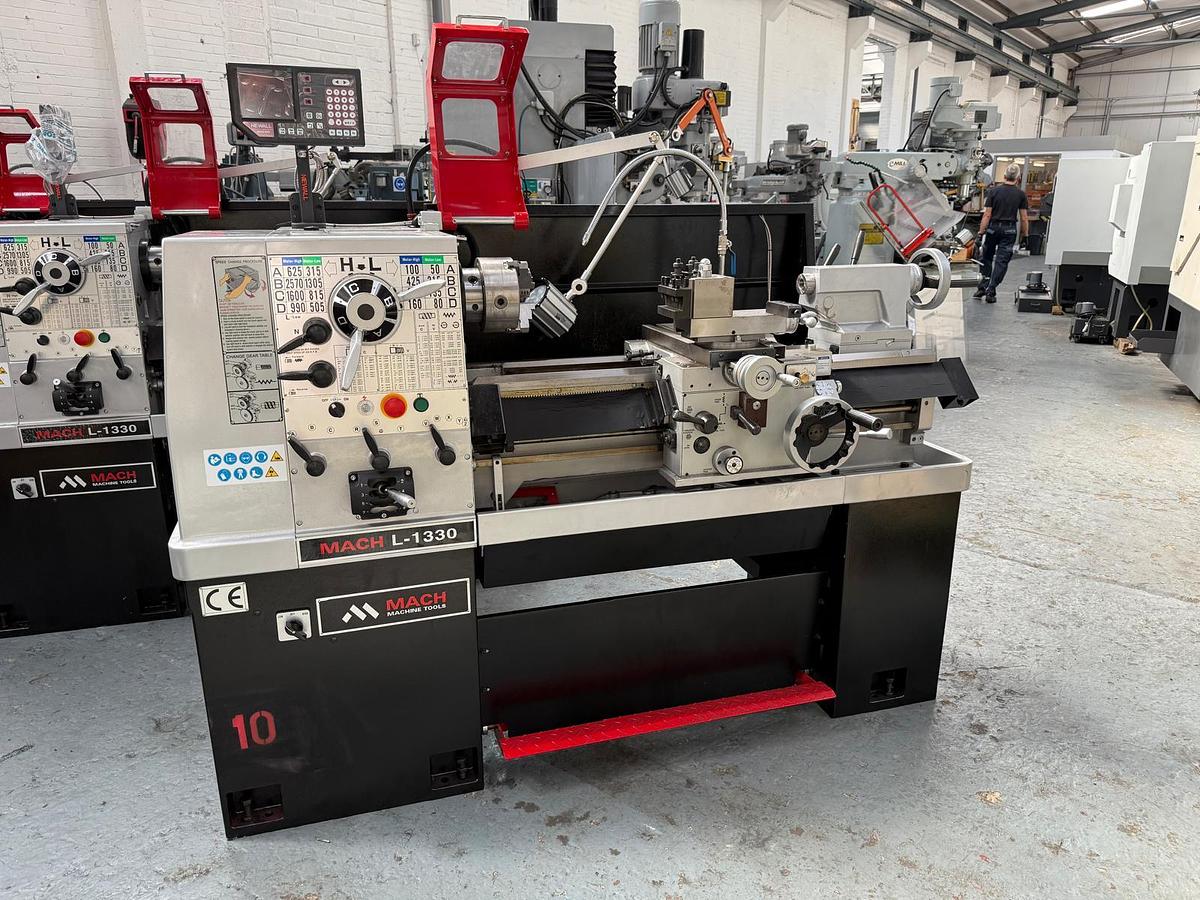

Choice of four ex-demo very lightly used MACH L1340 Lathes

Highlights

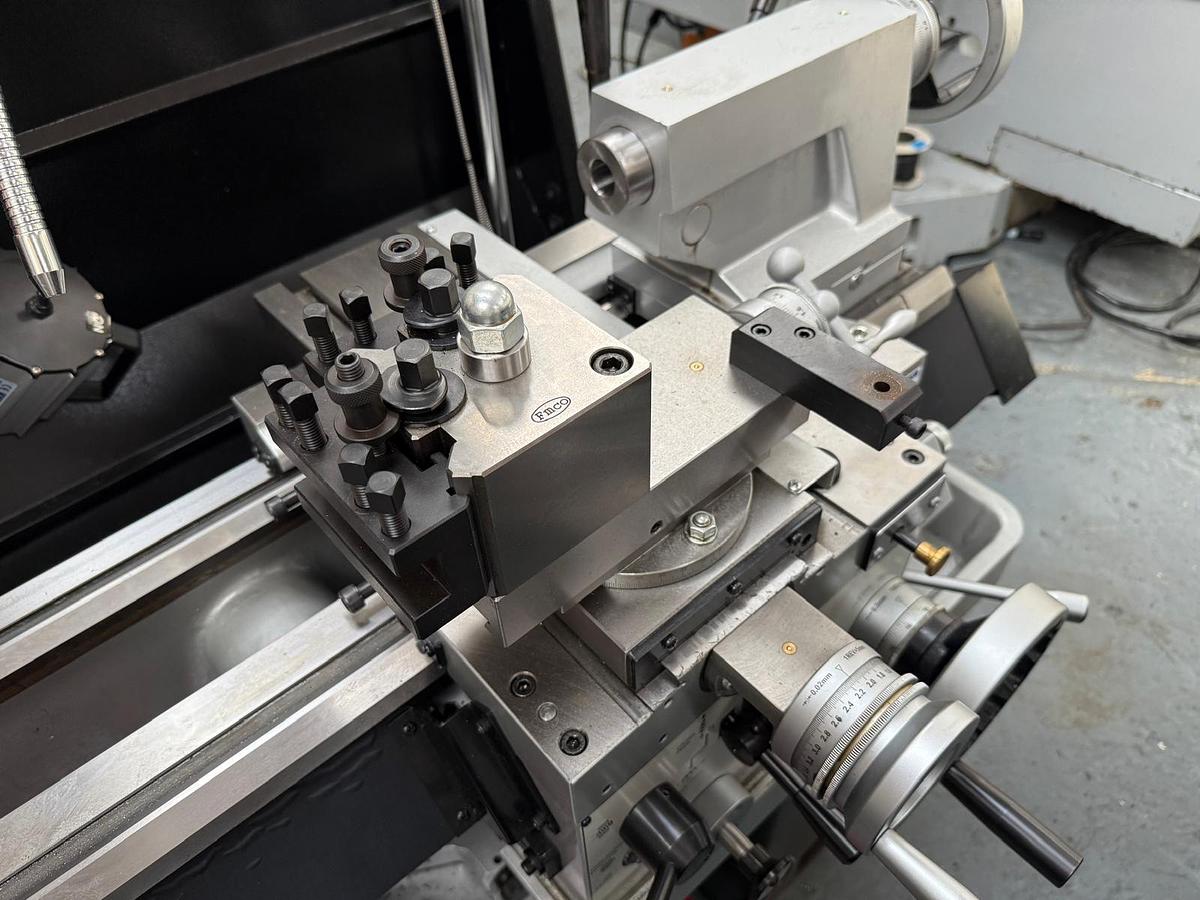

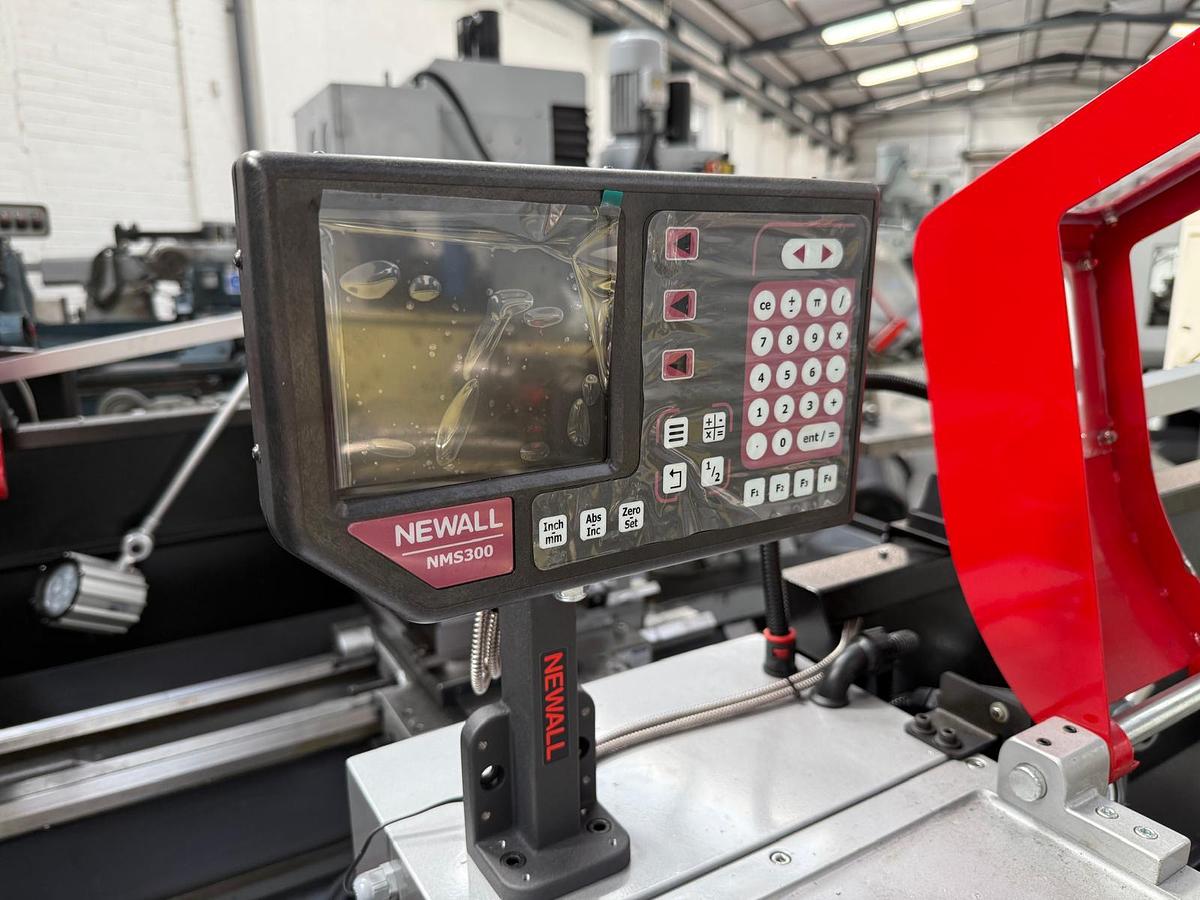

• Everything you need as standard, 3 Jaw Chuck, 4 Jaw Chuck, Face plate, Quick change tool post with tool holders, 2 axis Newall Digital ready out and a Micro bed stop, Low volt LED machining lamp, Coolant equipment, UKCA/CE chuck, tool post and Lead screw guarding… so all you’ll need is your parts and tooling.

• Heavy-duty spindle housed in a robust headstock for increased flexibility and improved productivity – especially when machining hard and difficult-to-machine materials.

• Headstock is rigidly-designed and built featuring British Matrix manufactured clutches; nylon safety pins in the end train, and Chromium Molybdenum gears and shafts ensuring a reliable machining process.

• Induction hardened and ground gears and shafts for reliable and long-life performance.

• Meehanite cast, anti-vibration and stress-relieved bed for high accuracy and process reliability featuring Turcite B coating between the bed and carriage.

• Anti-float designed backlash eliminator for improved accuracies, surface finishes and tool life.

Capacity:

Centre Height 171 mm (6.73")

Swing Over Bed 342 mm (13.46")

Swing in Gap 512 mm (20")

Swing Over Cross Slide 209 mm (8.25")

Distance Between CentresL1340: 1000 mm (40")

Bed Width230 mm (9")

Length of Gap in Front of Face Plate 150 mm (6")

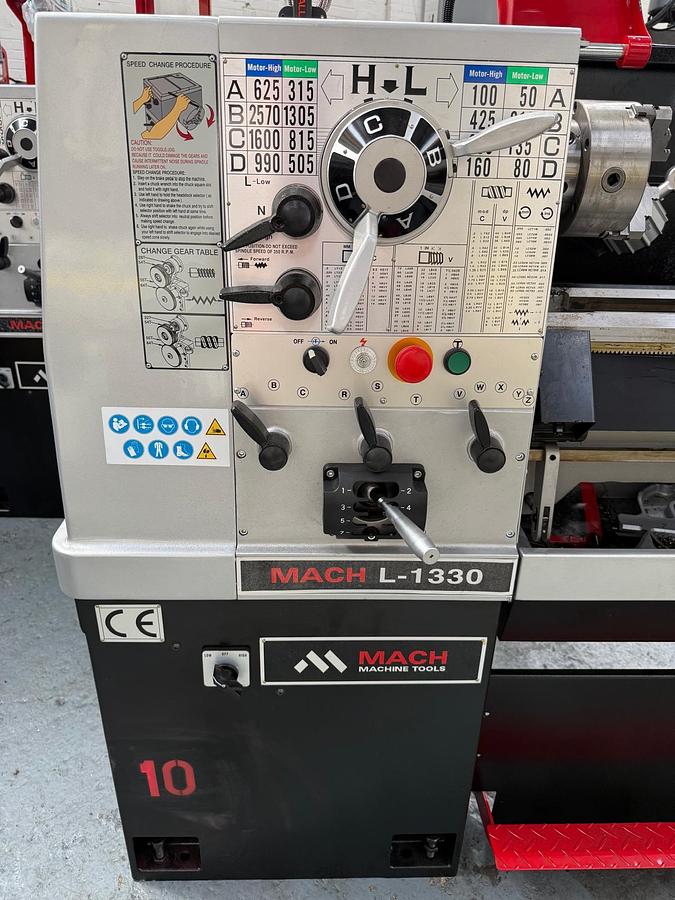

Headstock & Main Spindle:

Spindle Nose D1-4 x MT No. 5

Spindle Bore 40 mm (1.57")

Spindle Speeds16-step via 8 ranges & 2-speed motor

Speed Range 150 – 1305 RPM

Speed Range 2100 – 2570 RPM

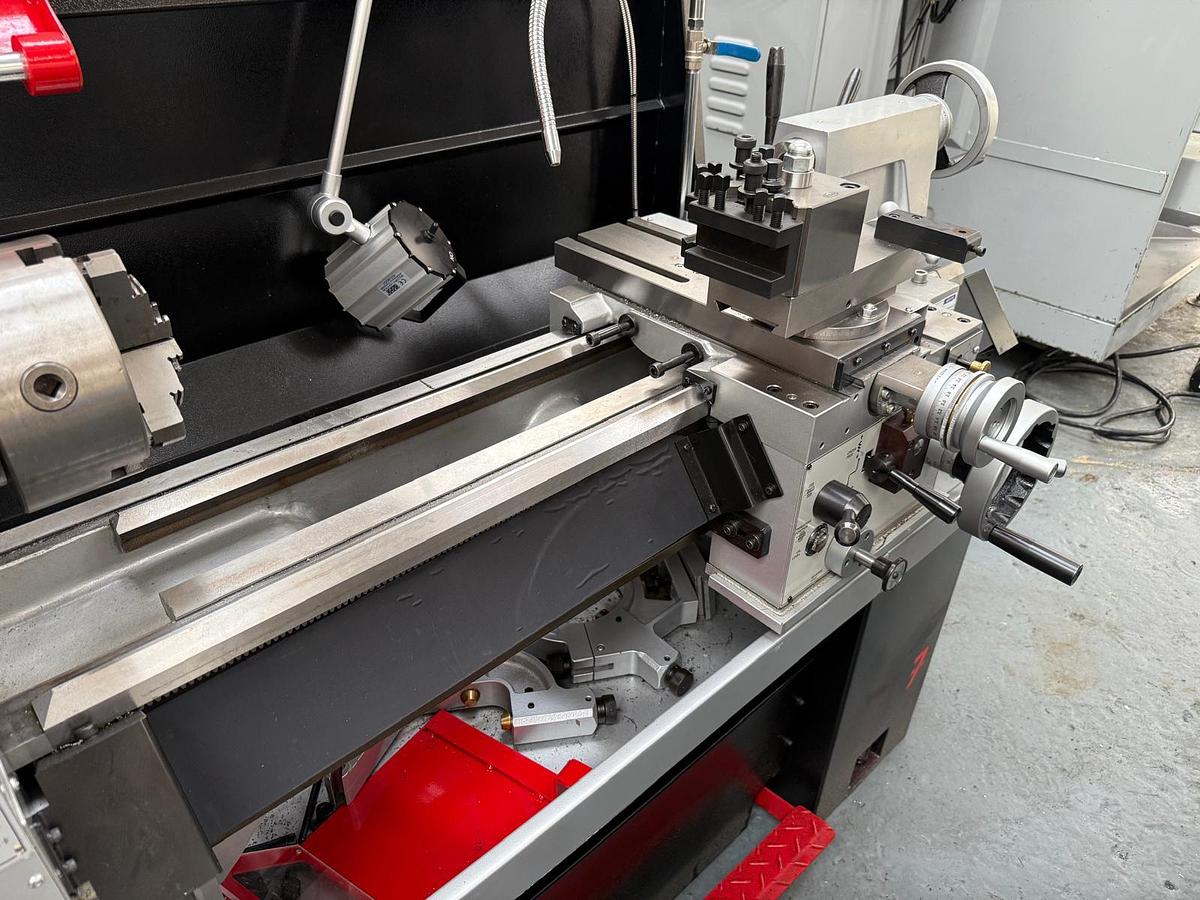

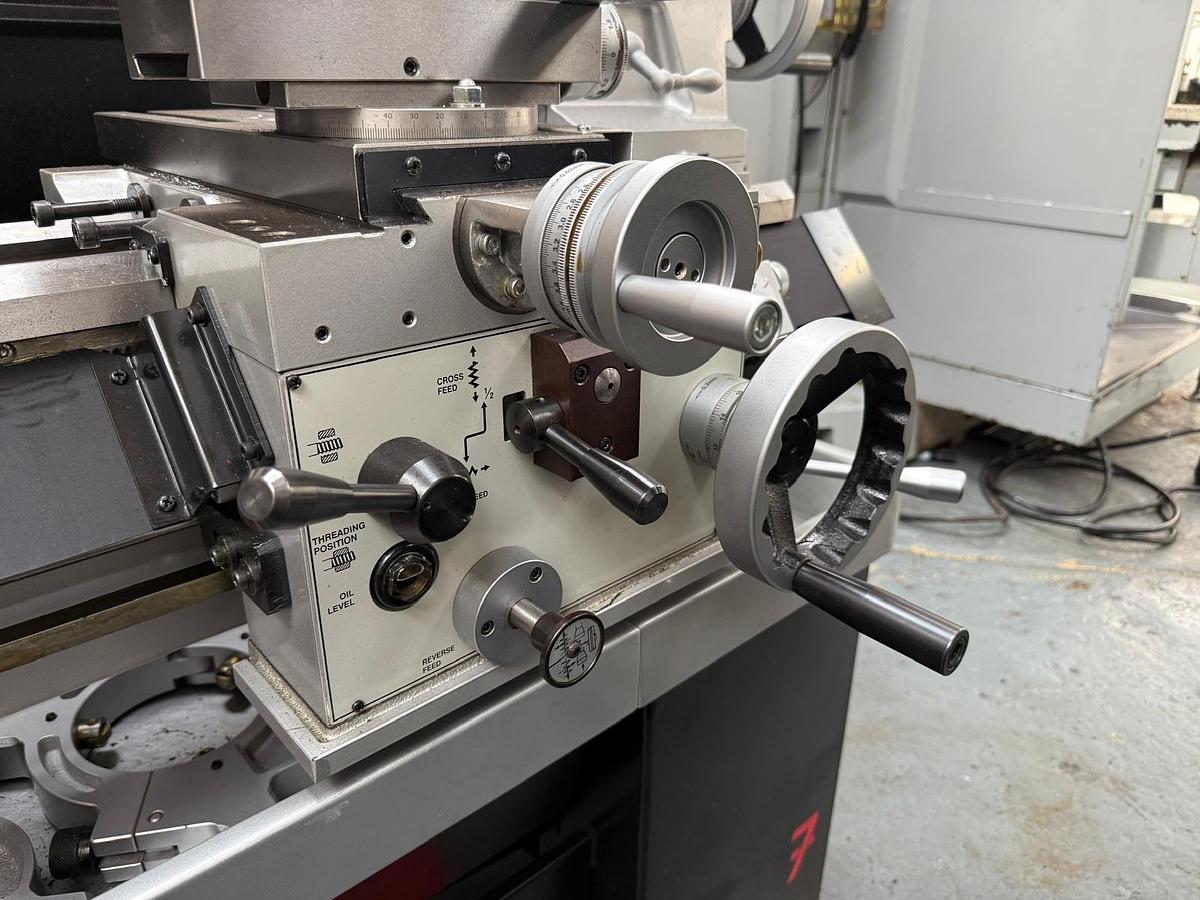

Carriage:

Carriage Length 400 mm (15.75")

Cross Slide Travel 180 mm (7")

Compound Slide Travel 100 mm (4")

Threads & Feeds:

Whitworth Threads 45 / 2–72 TPI

Metric Threads 39 / 0.2–14 mm

DP Threads 21 / 8–44 DP MP

Threads 18 / 0.3–3.5 MP

Longitudinal Feeds 0.05–1.7 mm/rev (0.002"–0.067")

Cross Feeds 0.025–0.85 mm/rev (0.001"–0.034")

Tailstock:

Tailstock Quill Diameter 50 mm (2")

Quill Travel112 mm (4.5")

Quill Taper MT No. 3

Motor:

Main Motor 2.2 kW (5 HP) AC

Coolant Pump 0.25 HP

Dimensions & Weight:

Machine Weight 1200 kg

Overall Dimensions (L × W × H) 2270 mm × 965 mm × 1900 mm
