MACH MDL 1800 CNC Flat Bed Lathe – Used Machine Specification

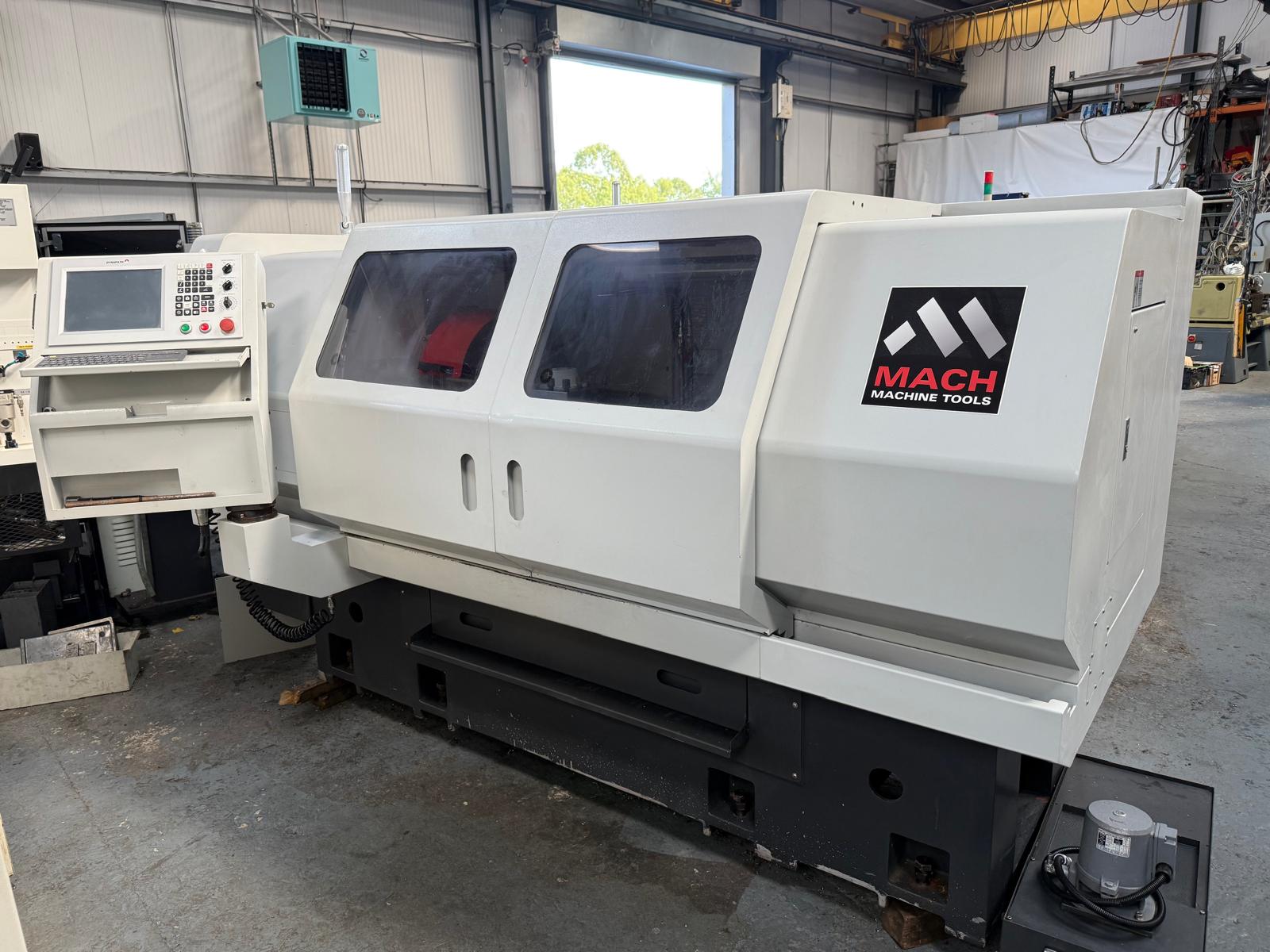

Machine Overview

The MACH MDL 1800 is a heavy-duty CNC flat bed lathe constructed from high-quality Meehanite castings with a ribbed bed design for enhanced rigidity and vibration damping. The machine features hardened and ground slideways on the X and Z axes together with pre-tensioned C1-class ballscrews to ensure excellent positioning accuracy and repeatability.

Capacity

Swing Over Bed: 550 mm (21.65")

Swing Over Cross Slide: 265 mm (10.43")

Distance Between Centres: 1,250 mm (49.21")

Bed Width: 380 mm (14.96")

X-Axis Travel: 250 mm (9.84")

Z-Axis Travel: 1,000 mm (39.37")

Spindle

Spindle Bore: 79 mm (3.11")

Spindle Speed Range: 10 – 3,500 RPM

Spindle Taper: MT6

Spindle Nose: A2-6

Main Spindle Motor: 7.5 kW (10 HP)

Chucking

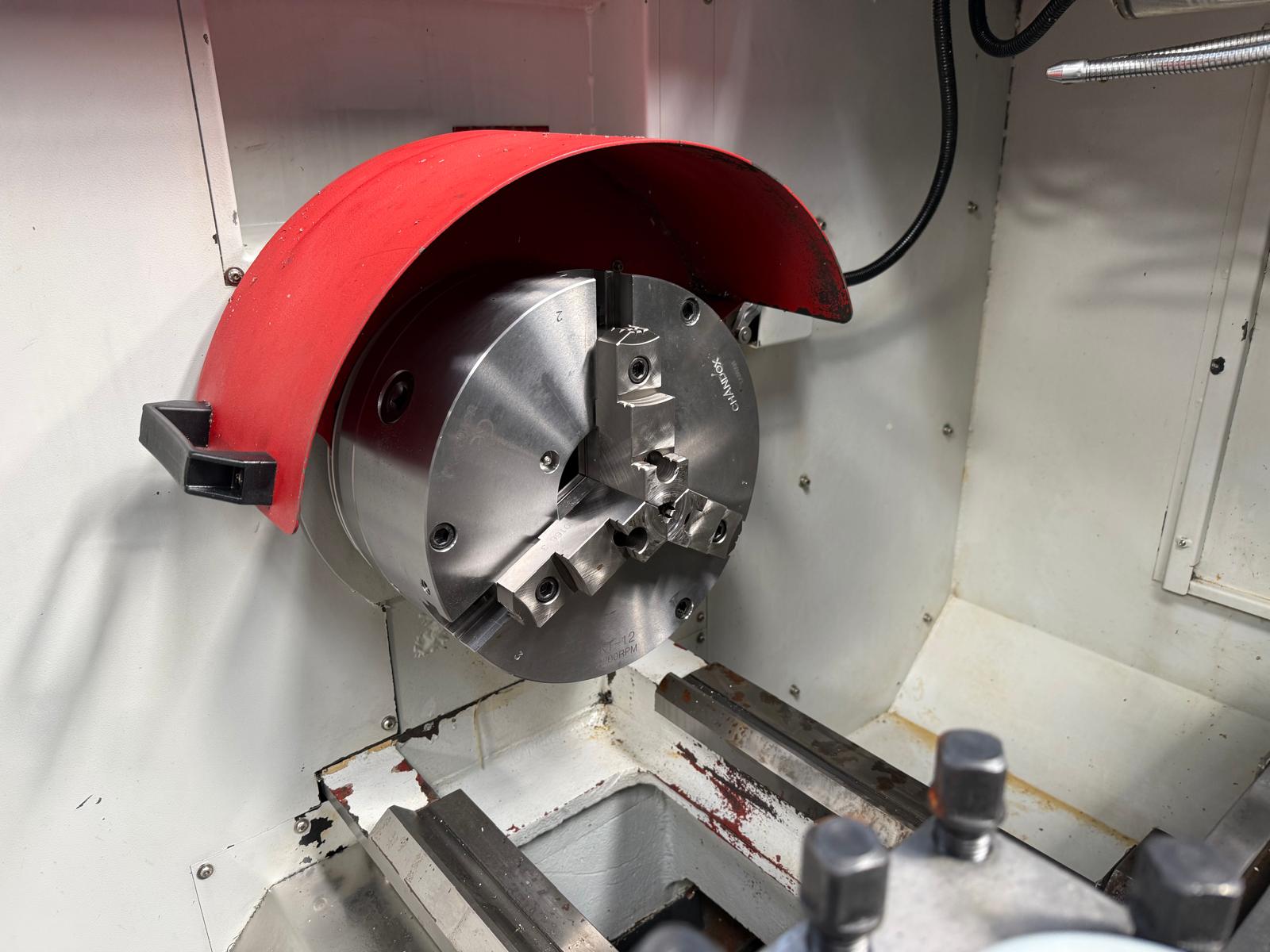

Manual 10" 3-Jaw Chuck

Manual 12" 4-Jaw Chuck

Axis Performance

Rapid Traverse (X/Z): 5 / 5 m/min (197 / 197 IPM)

X-Axis Motor: 2.7 HP

Z-Axis Motor: 2.7 HP

Tailstock

Quill Diameter: 52 mm (2")

Taper: MT4

Quill Travel: 140 mm (5.51")

Tailstock Operation: Manual

Accuracy

Repeatability (X/Z): 0.005 / 0.006 mm

Positioning Accuracy (X/Z): 0.010 / 0.016 mm

Turning Accuracy: 0.003 mm

Tooling

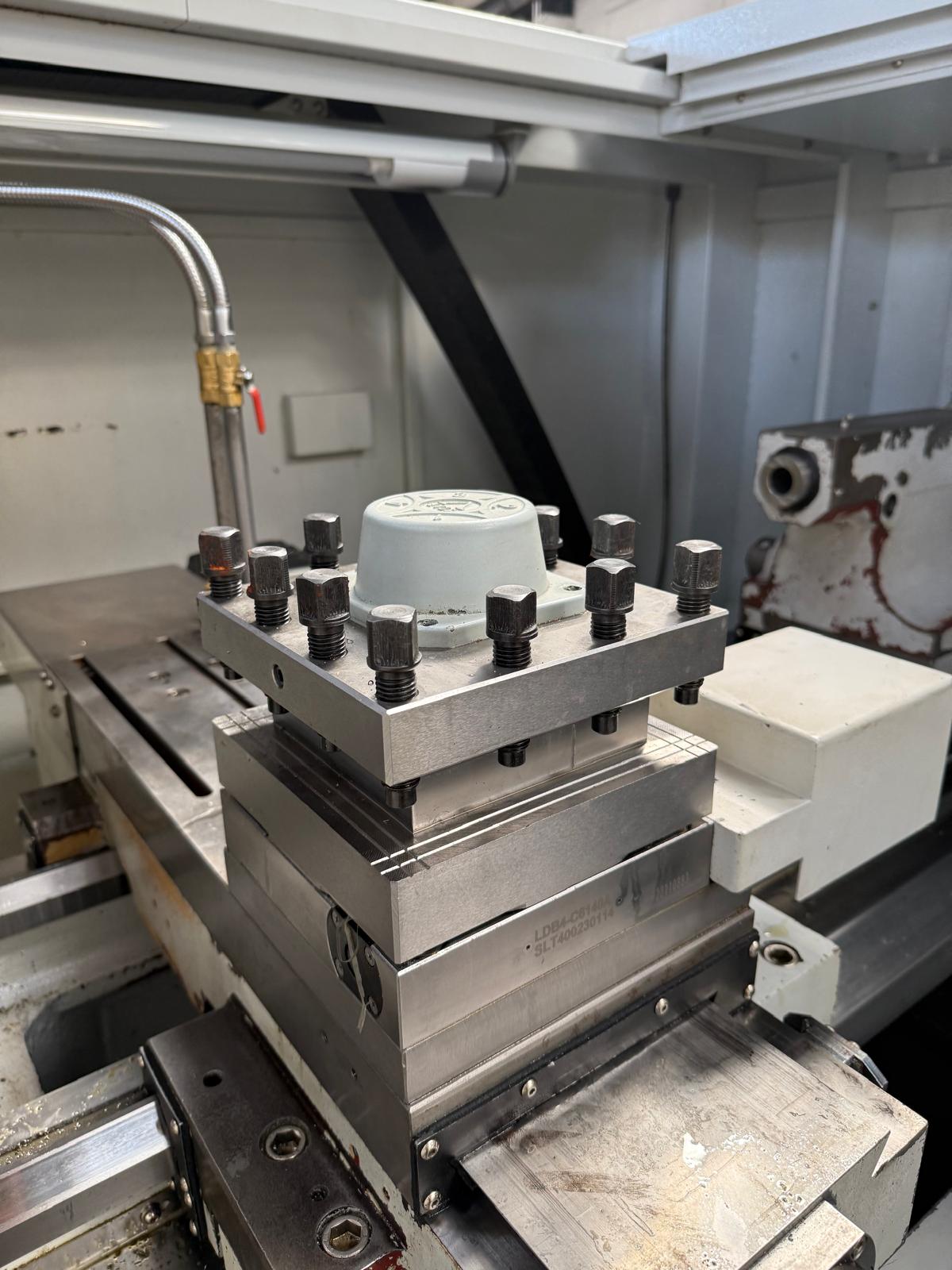

4-Station Turret, 25 mm Capacity (Optional)

Machine Dimensions & Weight

Dimensions (L x W x H): 3,000 x 1,750 x 1,650 mm

Weight: 2,700 kg

Standard Equipment

3-Jaw

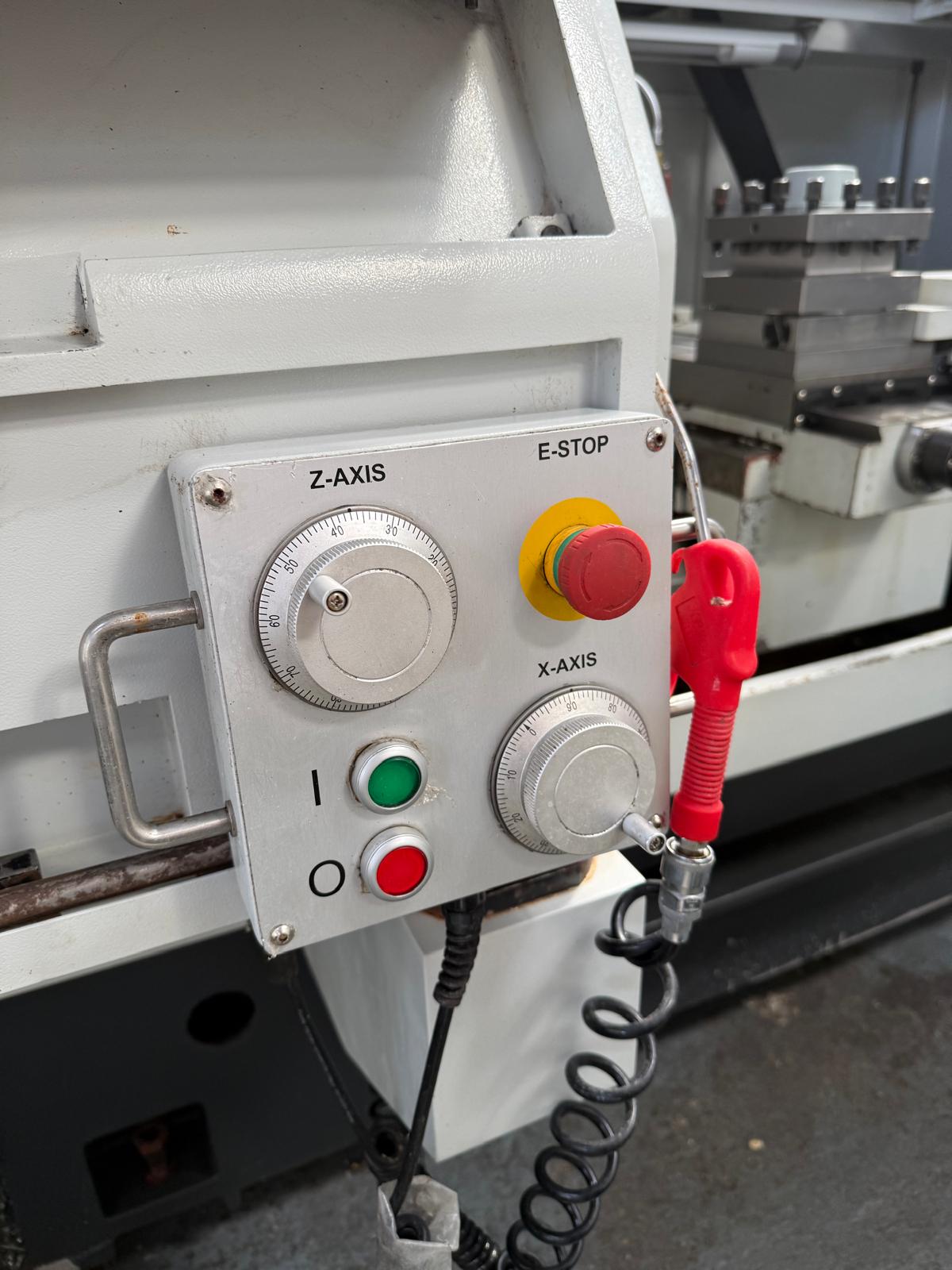

Electronic Handwheels

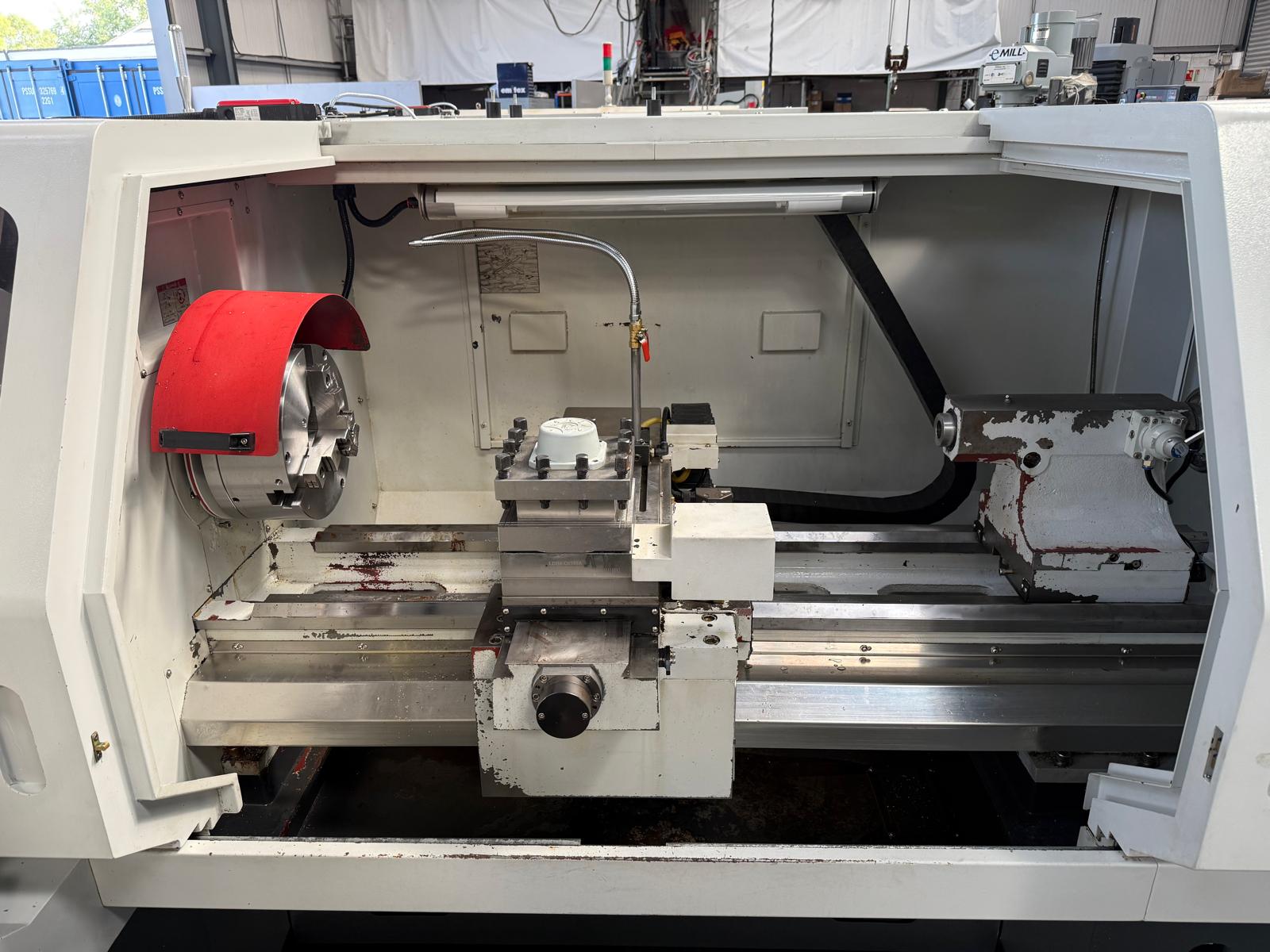

Fully Enclosed Splash Guard

Coolant System

Automatic Lubrication System

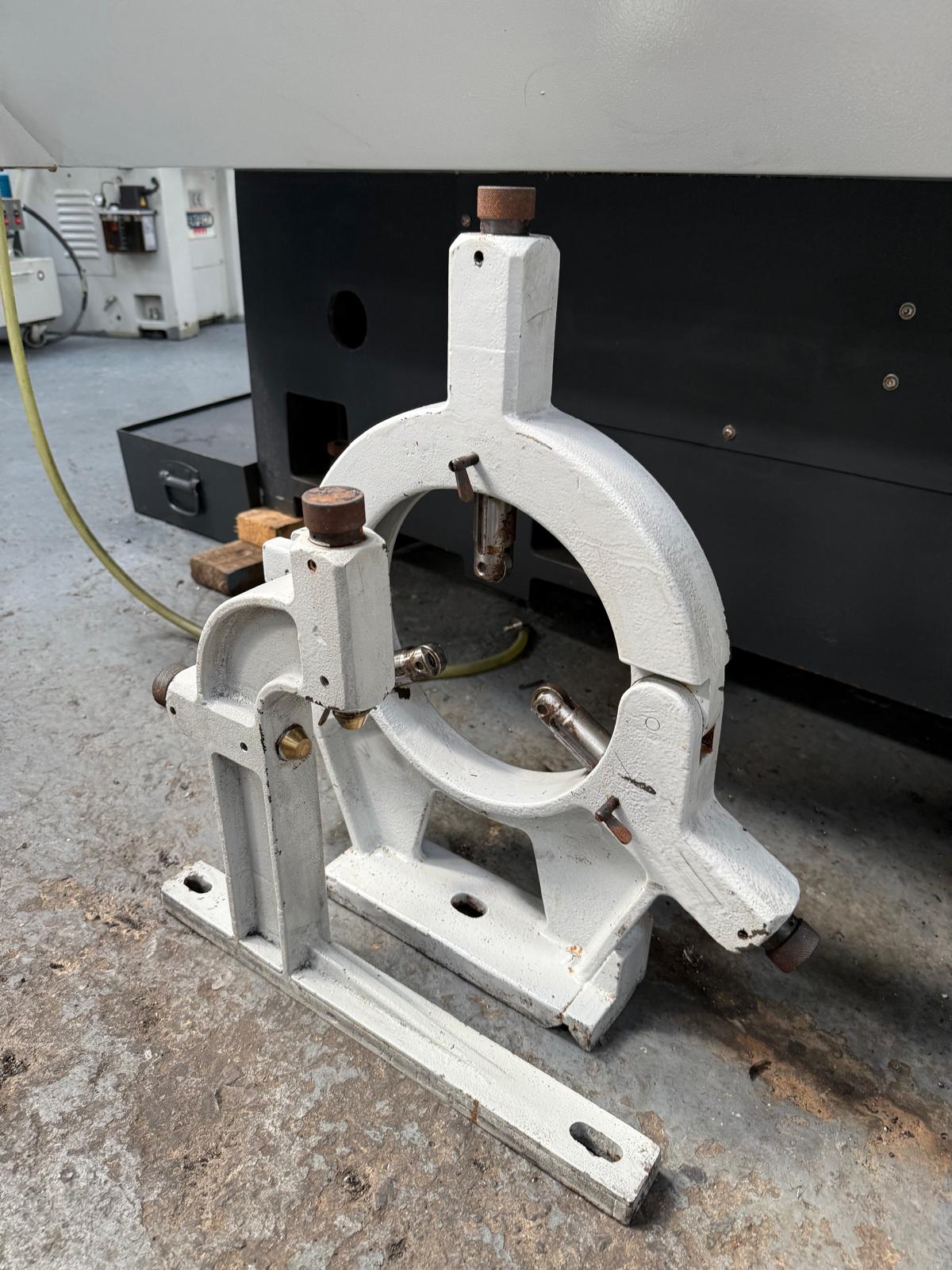

Fixed and Travelling Steadies

Work Lamp

Heat Exchanged Electrical Cabinet

CNC Control Features

12.1" LCD Colour Touch Screen

Conversational Programming

ISO / G-Code Programming

Built-In Wi-Fi for Remote Diagnostics and Support

USB & Network Connectivity

54 Work Offsets

Tool Length, Radius and Wear Offsets

Manual DRO Capability

Corner Accuracy Control

DXF Reader / Creator with Contour Selection

Program Retrace Function

Program Edit with Cut, Copy & Paste

Background Editing

Toolpath Verification

3D Solid Model Simulation

Suggested Speed & Feed Database

Roughing Cycles for Facing, Turning, Tapering and Threading

Internal & External Threading Cycles

Grooving and Parting Functions

Single Block Execution

8 GB Program Storage

A robust and versatile CNC turning centre suitable for general engineering, subcontract machining, maintenance workshops and production environments. Designed to provide excellent rigidity, accuracy and ease of programming for a wide range of turning applications.
