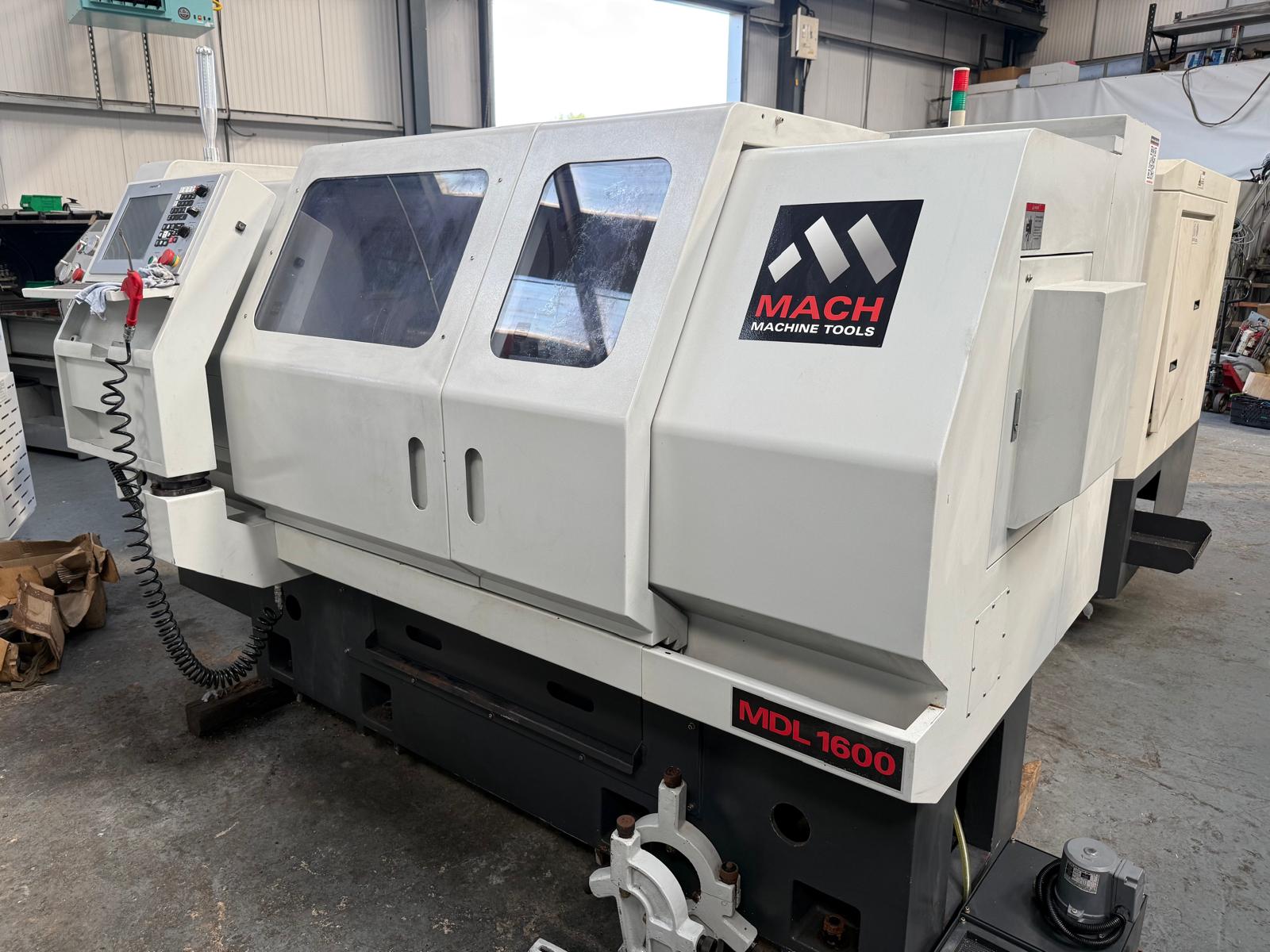

Used 2024 MACH MDL 1600 CNC Flat Bed Lathe

Machine Overview

Manufactured in 2024, this used MACH MDL 1600 CNC Flat Bed Lathe is a robust and accurate turning centre built from high-quality Meehanite castings with a heavily ribbed bed design for maximum rigidity and vibration damping. The machine features hardened and ground slideways on the X and Z axes together with pre-tensioned C1-class ballscrews, providing excellent accuracy, repeatability and reliability in production and general engineering environments.

Capacity

Swing Over Bed: 490 mm (19.29")

Swing Over Cross Slide: 240 mm (9.44")

Distance Between Centres: 1,050 mm (41.33")

Bed Width: 300 mm (11.81")

X-Axis Travel: 230 mm (9.06")

Z-Axis Travel: 820 mm (32.28")

Spindle

Spindle Bore: 54 mm (2.12")

Spindle Speed Range: 400 – 3,500 RPM

Spindle Taper: MT6

Spindle Nose: A2-6

Main Spindle Motor: 7.5 kW (10 HP)

Chuck

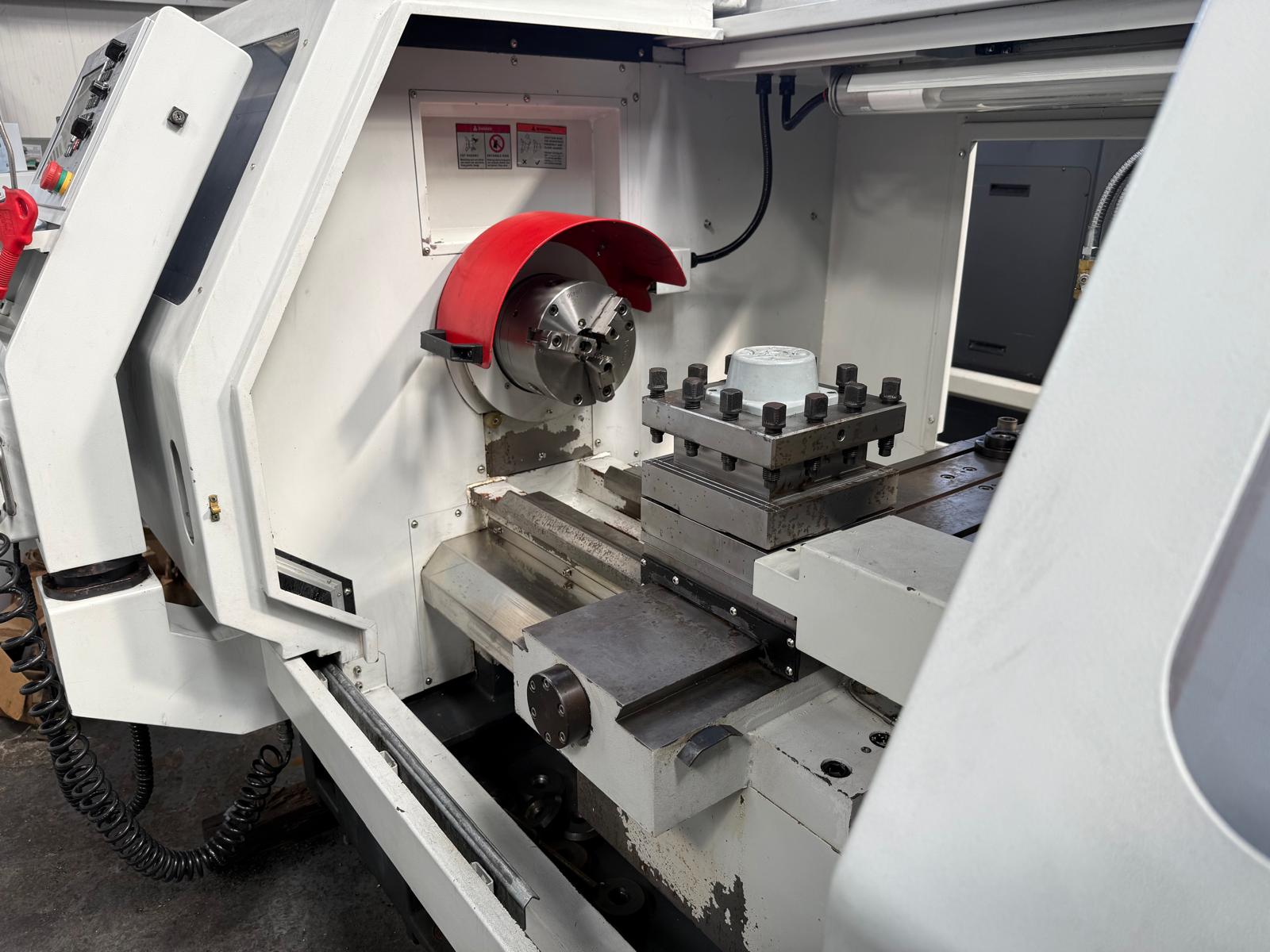

8" Manual 3-Jaw Chuck

10" Manual 4-Jaw Chuck

Axis Performance

Rapid Traverse (X/Z): 5 / 5 m/min (197 / 197 IPM)

Axis Drive Motors: 2.6 HP

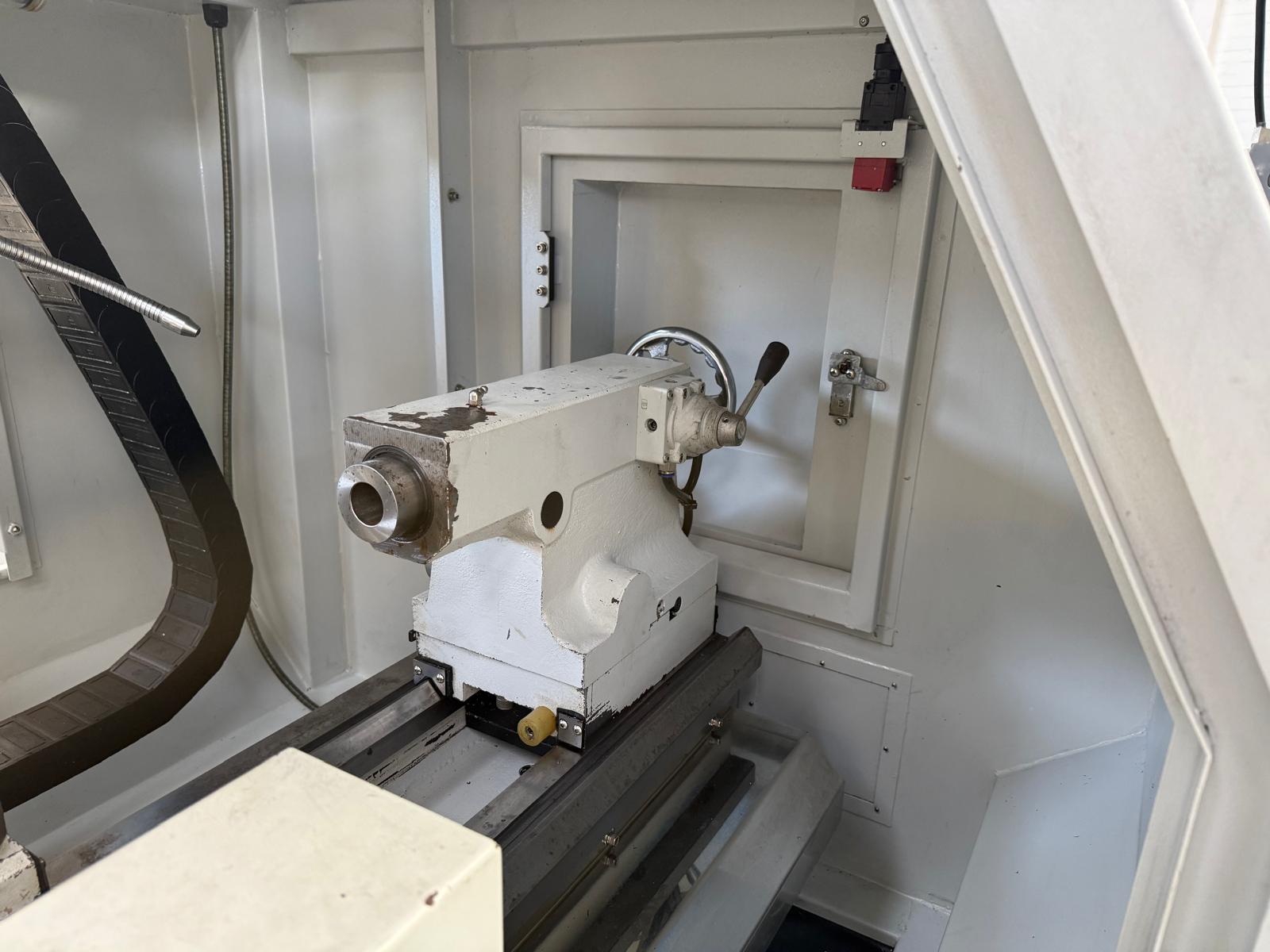

Tailstock

Quill Diameter: 52 mm (2.17")

Taper: MT4

Quill Travel: 140 mm (5.51")

Tailstock Type: Manual

Accuracy

Repeatability (X/Z): 0.005 / 0.006 mm

Positioning Accuracy (X/Z): 0.010 / 0.016 mm

Turning Accuracy: 0.003 mm

Tooling

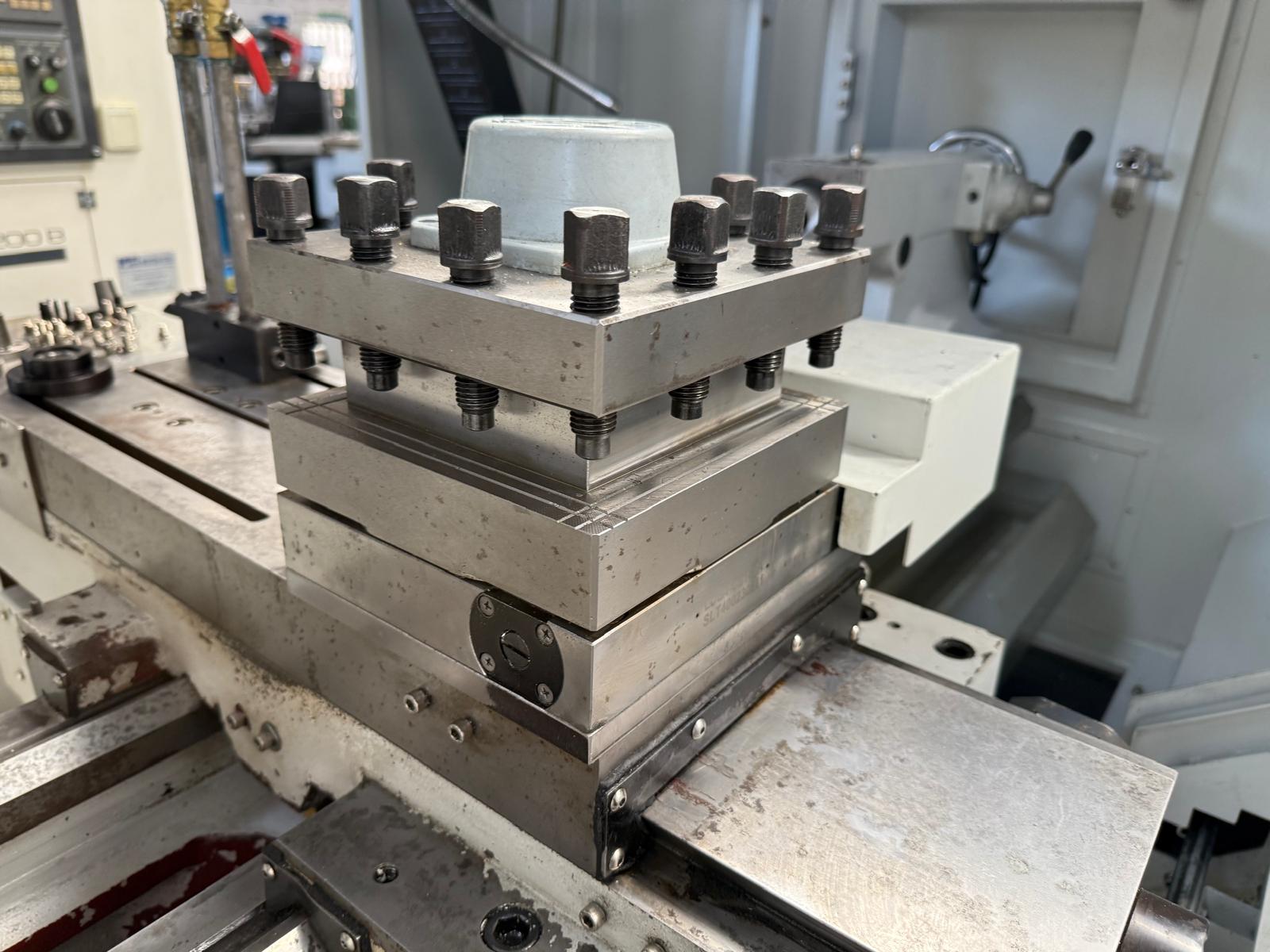

4-Station Turret

Machine Dimensions & Weight

Dimensions (L x W x H): 2,650 x 1,600 x 1,650 mm

Machine Weight: 2,250 kg

Standard Equipment

3-Jaw

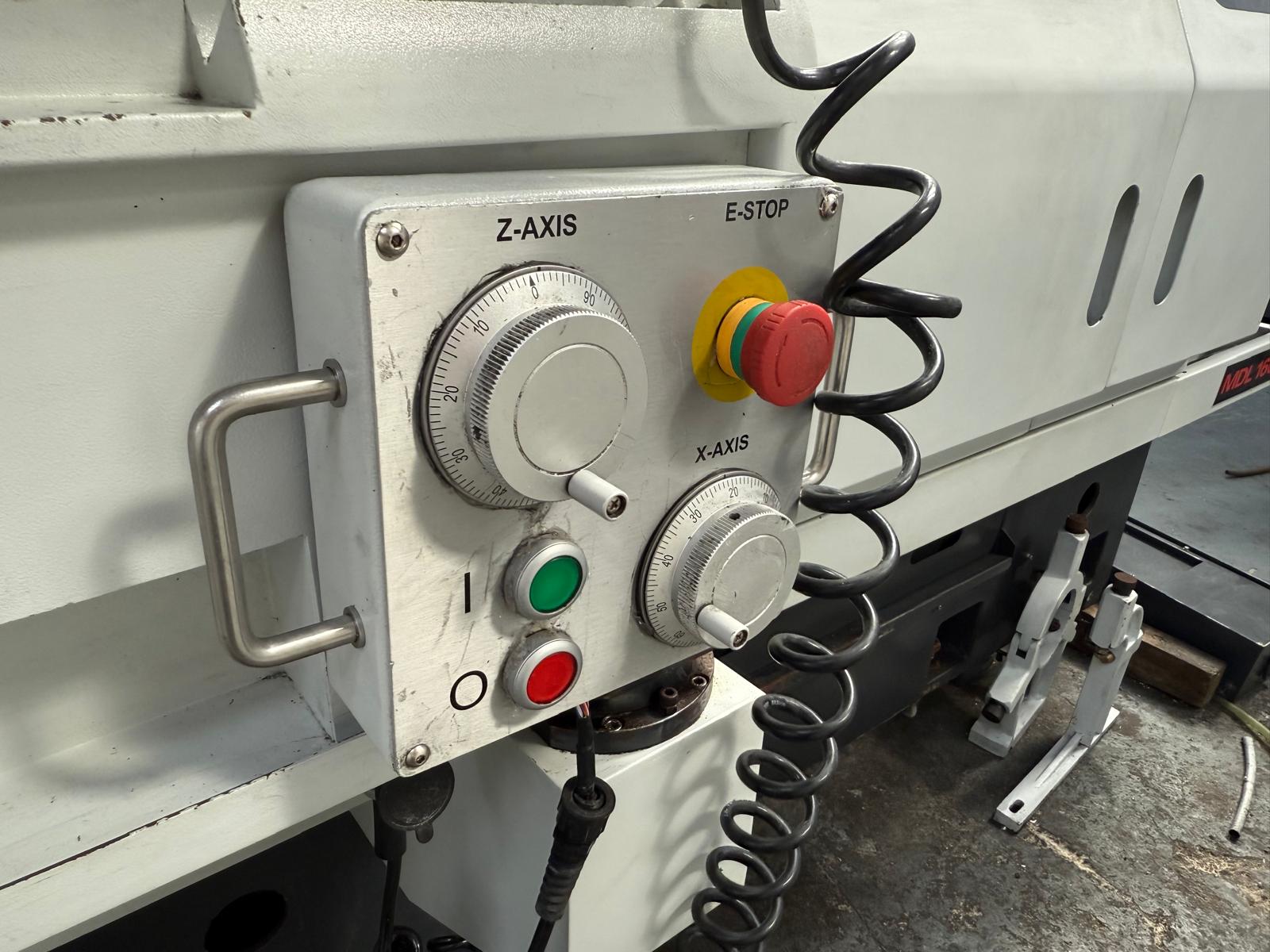

Electronic Handwheels

Fully Enclosed Splash Guard

Coolant System

Drill Chuck and Taper Adaptor

Automatic Lubrication System

Fixed and Travelling Steadies

Work Lamp

Heat Exchanged Electrical Cabinet

CNC Control Features

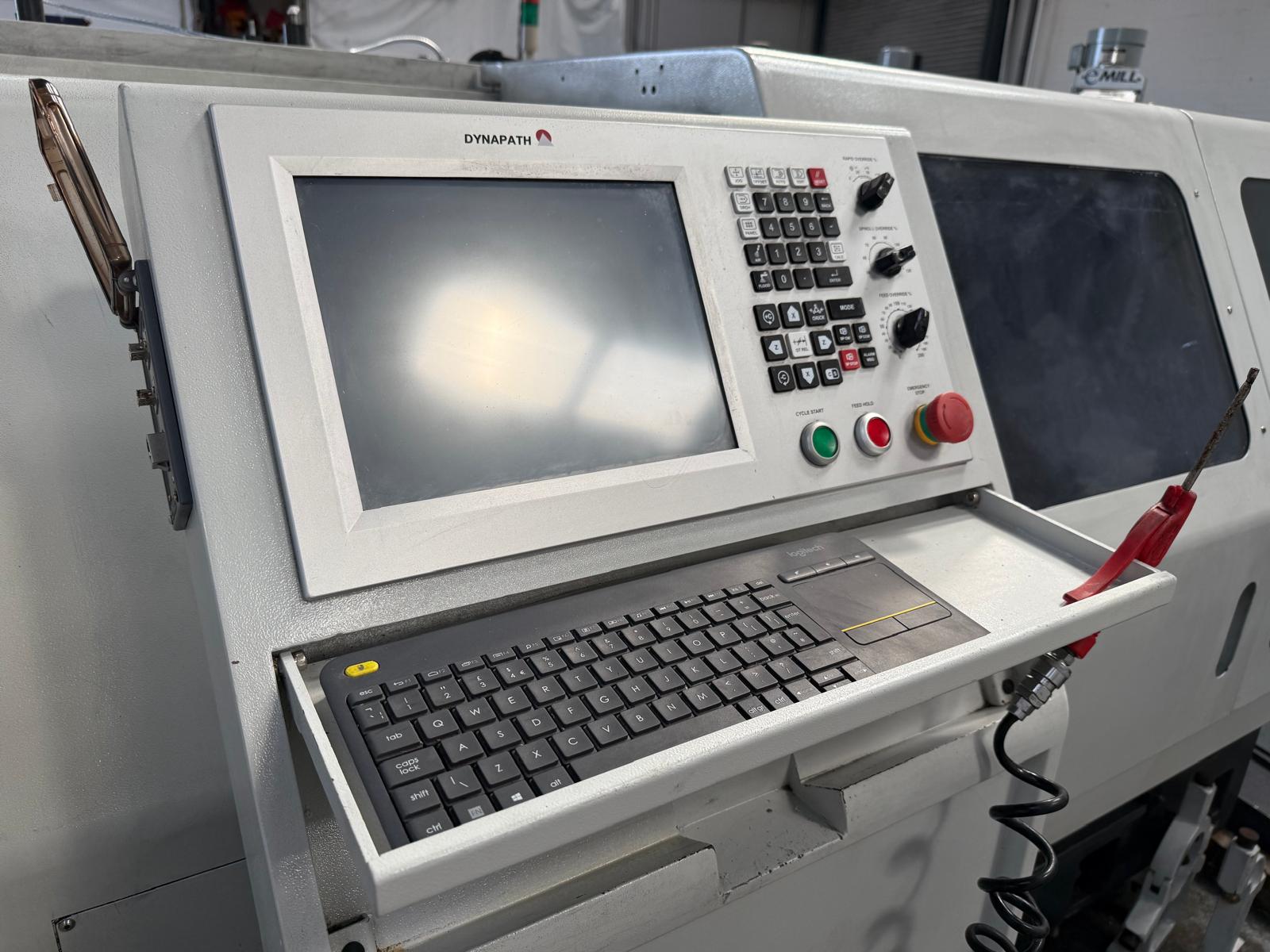

12.1" LCD Colour Touch Screen

Conversational Programming

ISO / G-Code Programming

Built-In Wi-Fi for Remote Diagnostics and Support

USB & Network Connectivity

54 Work Offsets

Tool Length, Radius and Wear Offsets

Manual DRO Capability

Corner Accuracy Control

Advanced DXF Reader / Creator with Contour Selection

Program Retrace Function

Program Editing with Cut, Copy and Paste

Background Editing

Toolpath Verification

3D Solid Model Simulation

Suggested Speed and Feed Database

Roughing Cycles for Facing, Turning, Tapering and Threading

Internal and External Threading Cycles

Grooving and Parting Functions

Single Block Execution

8 GB Program Storage

Condition

Year of Manufacture: 2024

Condition: Used

A modern, high-specification CNC turning centre offering excellent accuracy, rigidity and ease of programming. Suitable for subcontract machining, precision engineering, maintenance departments and general production work.
