2017 Hurco TMM10i

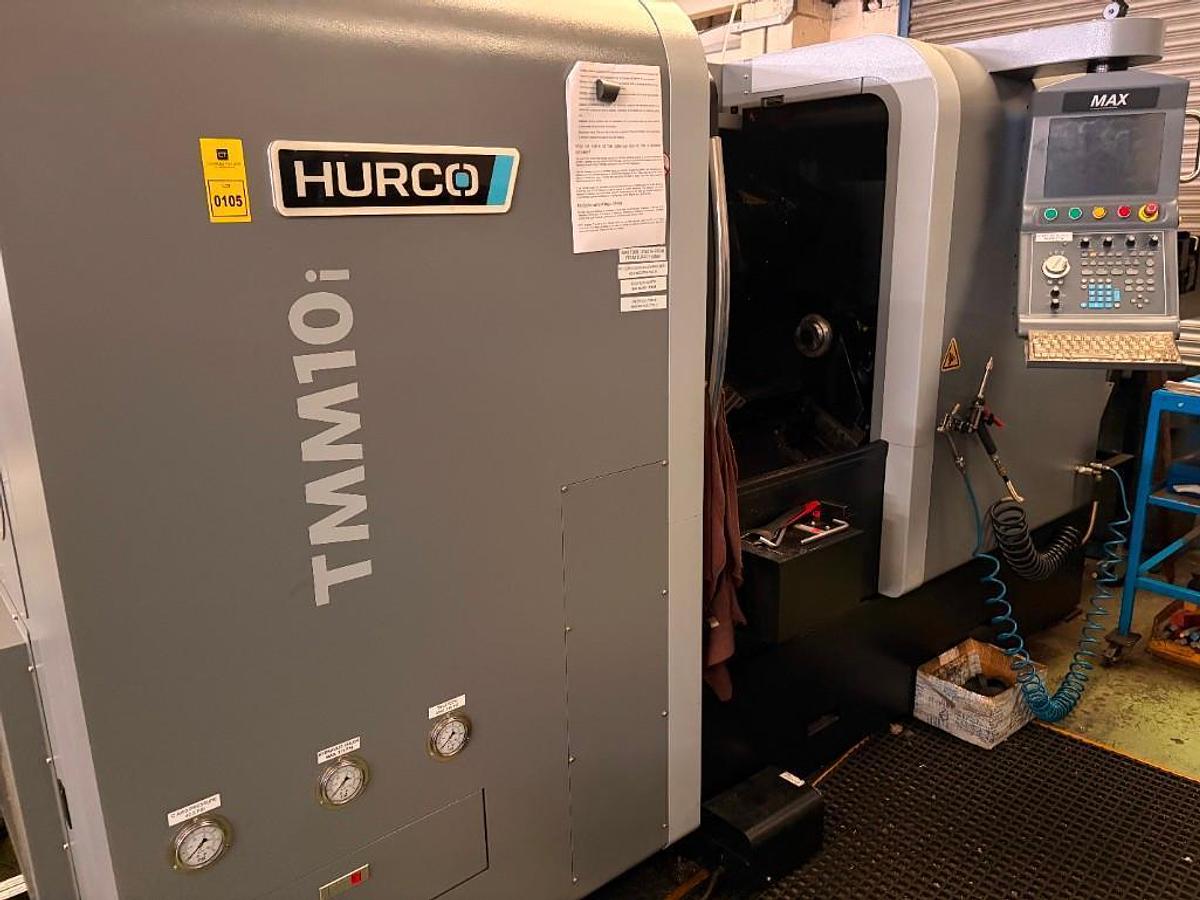

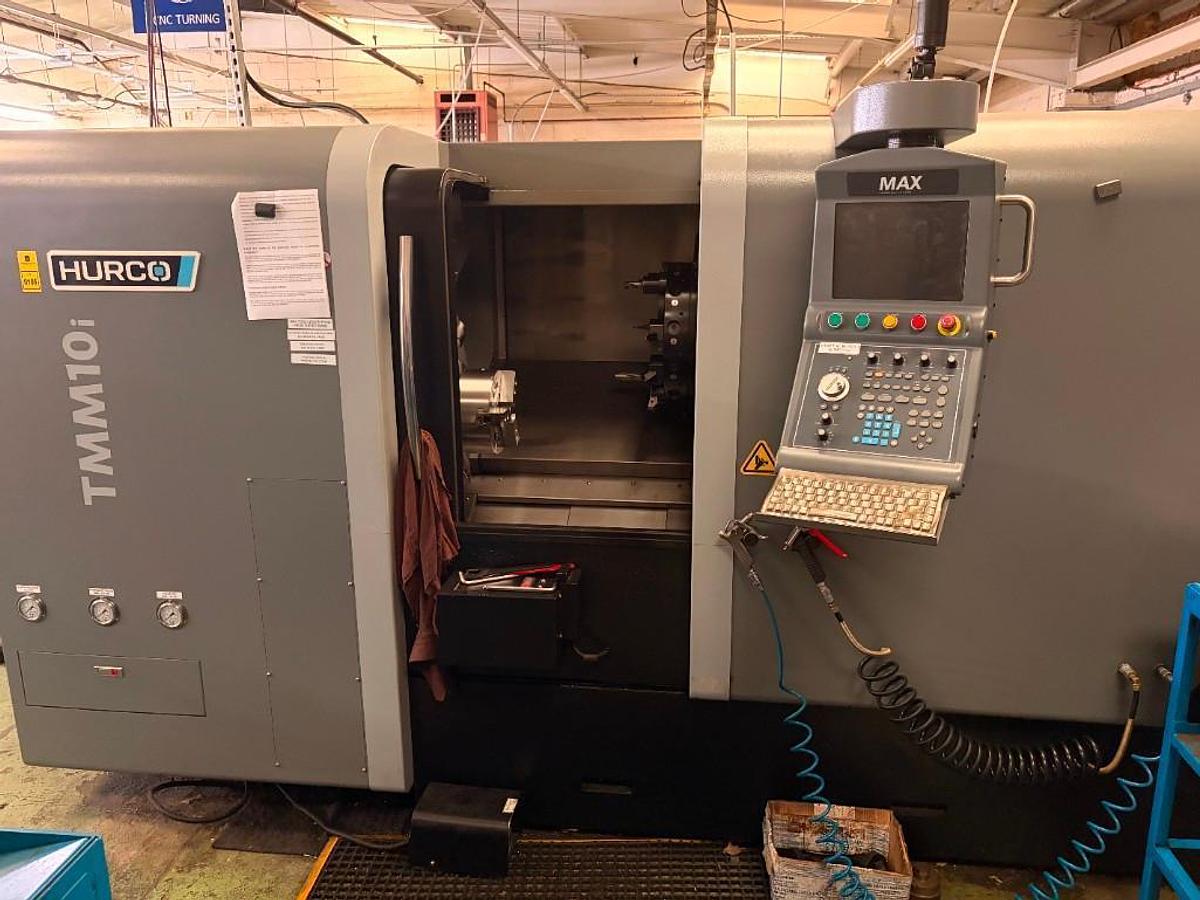

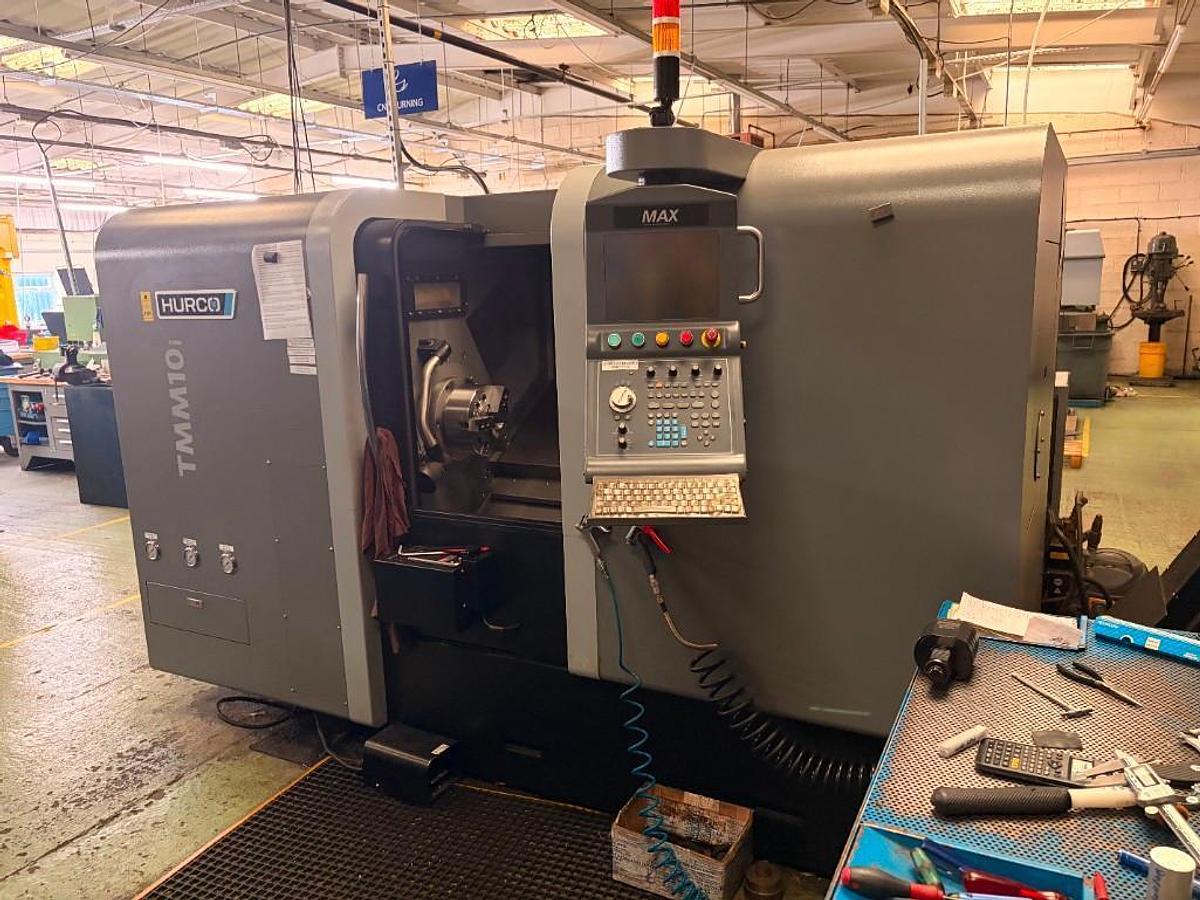

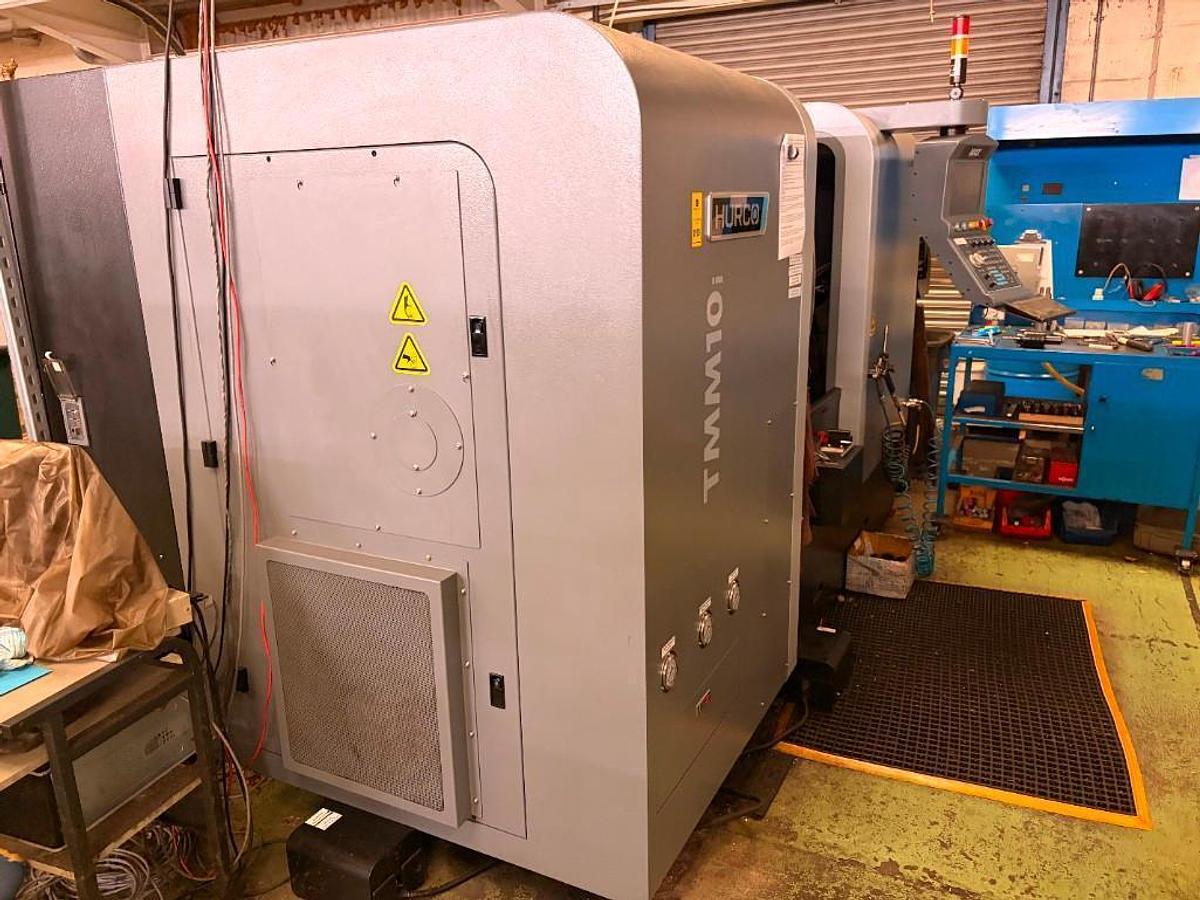

Used 2017 Hurco TMM10i CNC Lathe – Driven Tool

In great condition with a full service history. Supplied with Hurco WinMax control, driven tooling, direct drive spindle, 12-station turret, 10" chuck, and parts catcher. The machine can be seen under power in our showroom.

SPECIFICATION:

CAPACITY:

• Distance Between Centers: 744 mm
• Swing Over Bed Diameter: 582 mm
• Swing Over Cross Slide Diameter: 402 mm
• Max Turning Diameter: 450 mm
• Max Turning Length: 758 mm
• Max Bar Capacity: 76 mm
• X, Z Axis Travel: 250 x 790 mm

SPINDLE:

• Max Spindle Speed: 3,000 rpm
• Max Torque (High Gear): 295.9 Nm @ 600 rpm
• Spindle Power: 18.5 kW
• Spindle Nose: A2-8
• Chuck Diameter: 260 mm (10")

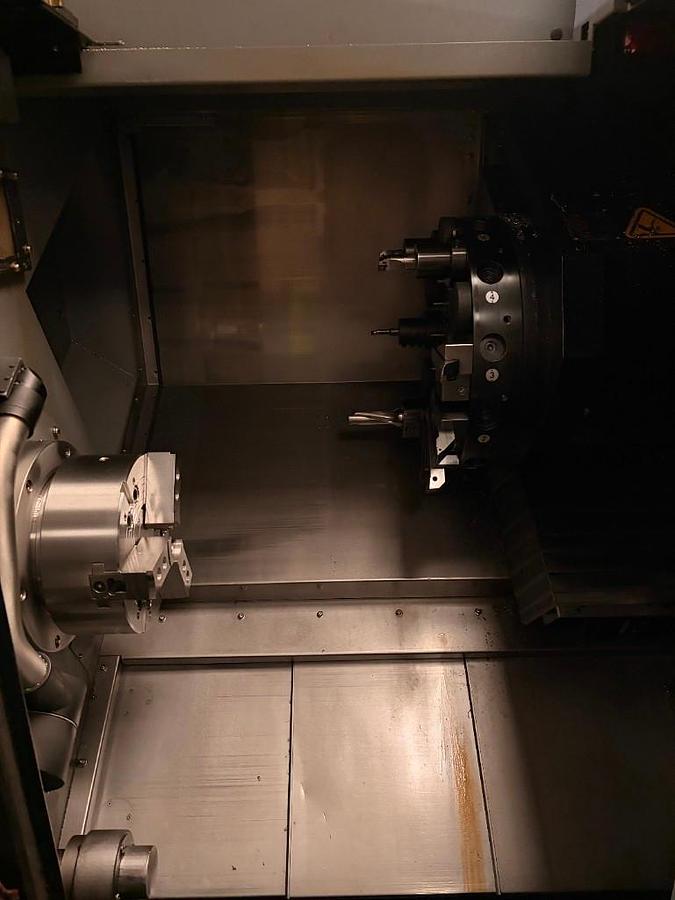

TURRET:

• Tool Type: Driven Tool Turret
• Capacity: 12 Stations
• Driven Tooling

FEEDRATES:

• Rapid Traverse (X, Z Axis): 30 m/min

GENERAL:

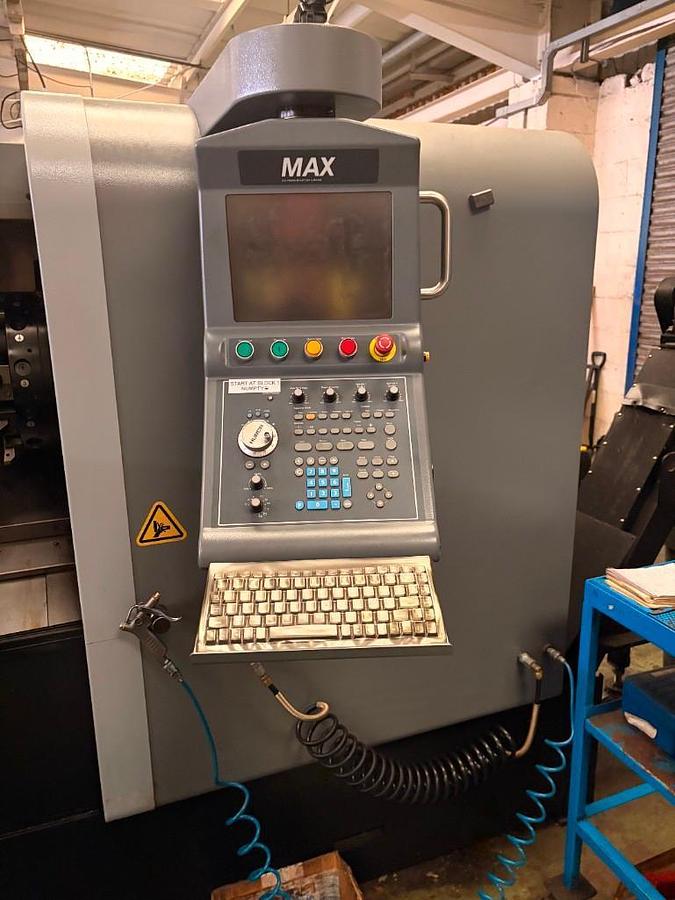

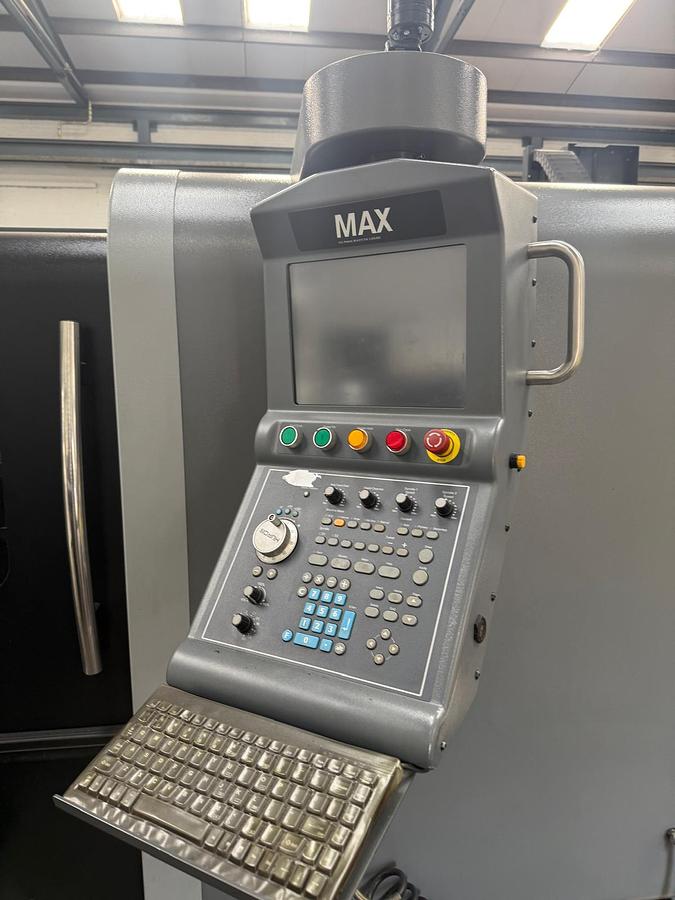

• Control: Hurco WinMax

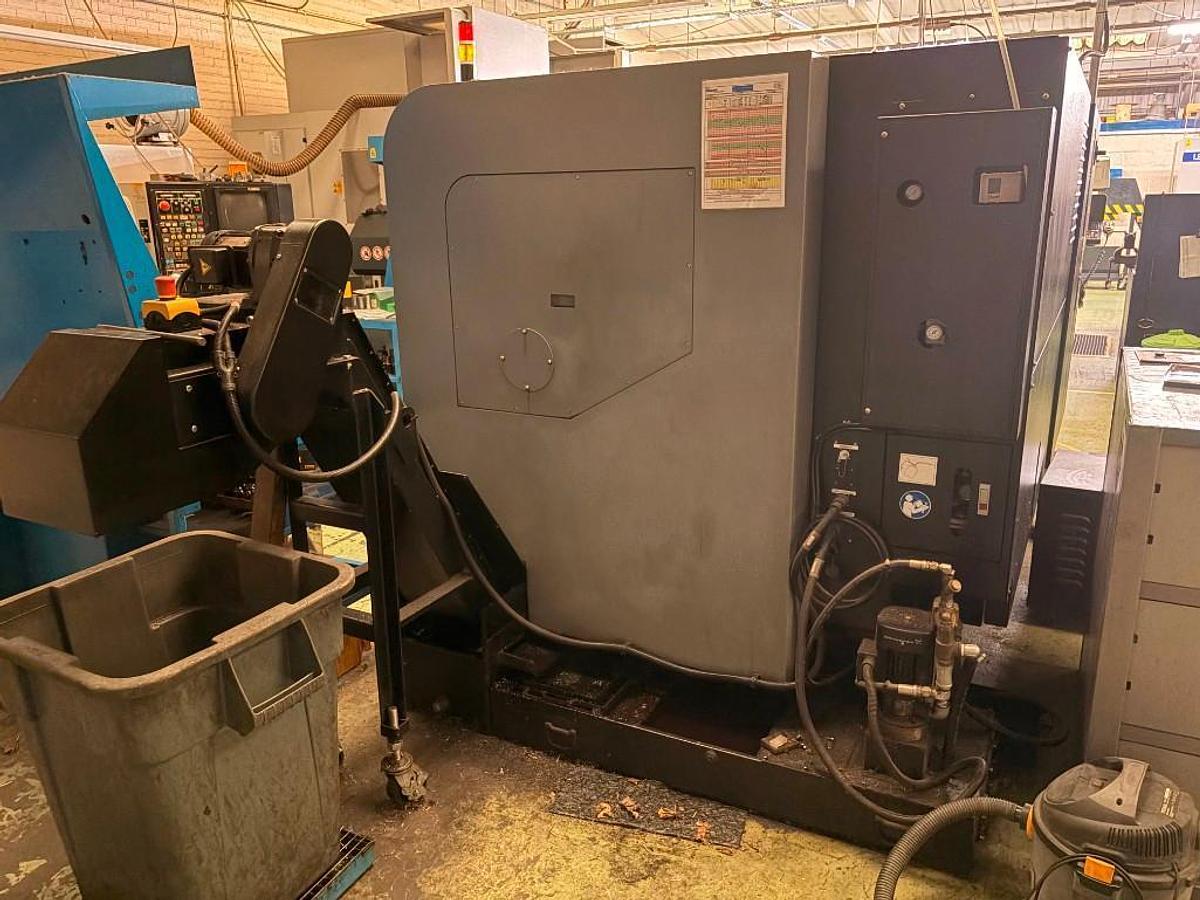

• Parts Catcher
• Year of Construction: 2017

SIZE:

• Max Operating Floor Space: 4,881 x 2,854 mm
• Machine Height: 2,233 mm
• Machine Weight: 5,014 kg
