2022 MACH MDS 900-4T

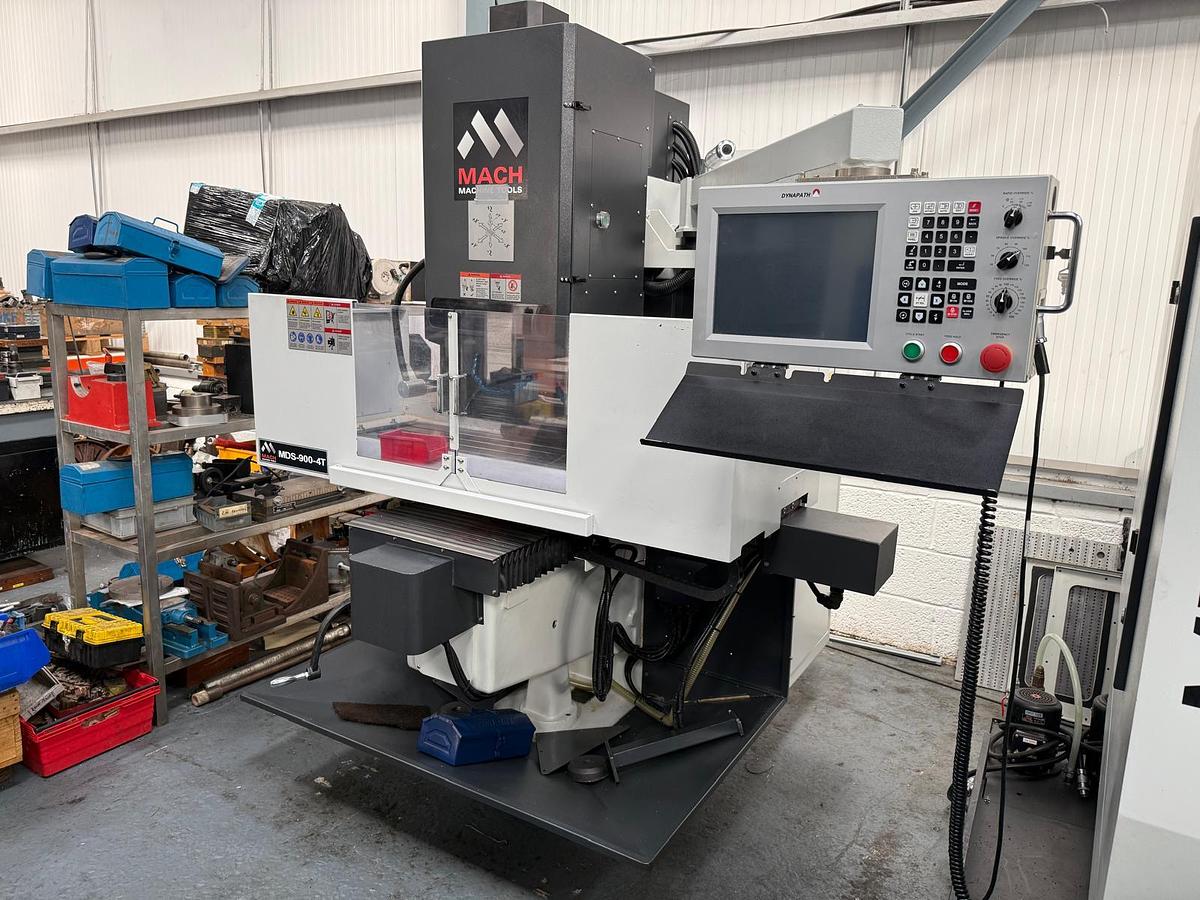

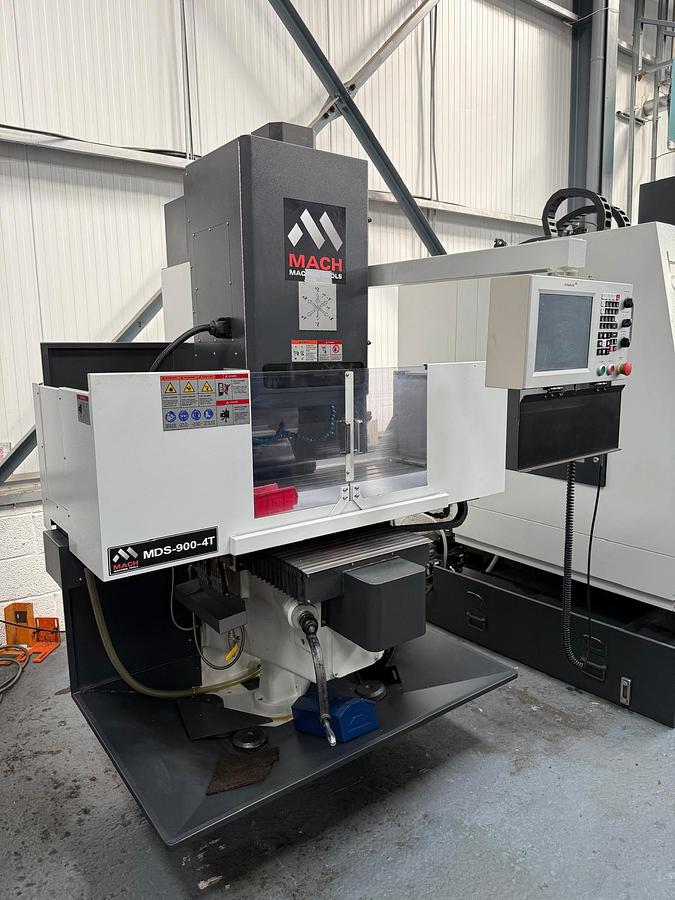

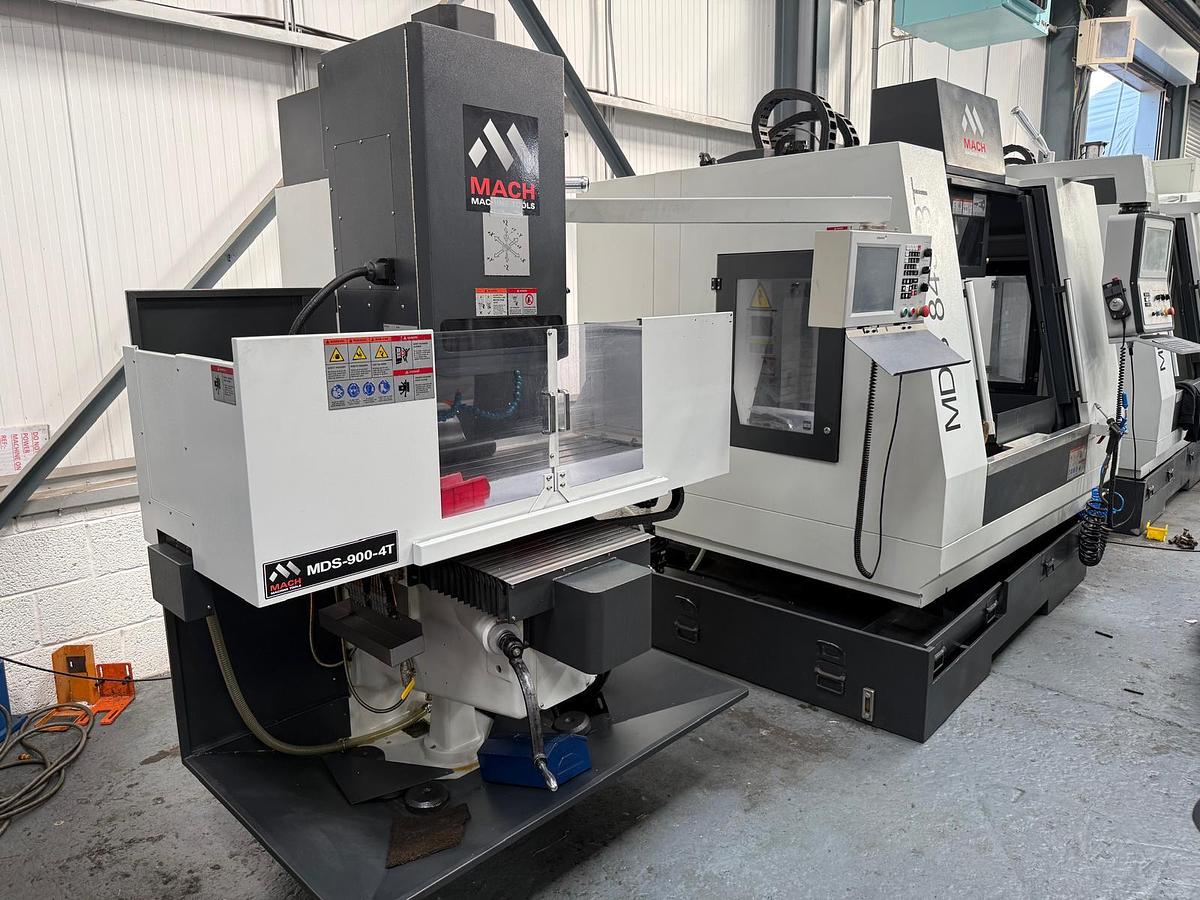

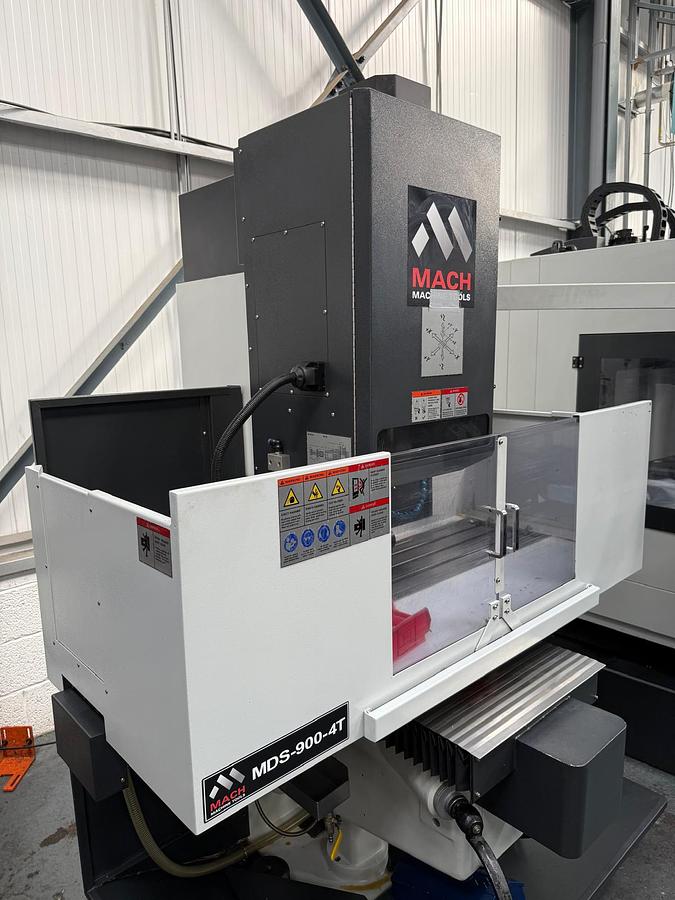

Used 2022 MACH MDS 900-4T CNC/Manual Knee Mill. Supplied with DynaPath WinDelta 3-Axis control, Yaskawa drives, integrated 4-tool position ATC and 5,000 RPM BT40 direct-drive spindle.

SPECIFICATION:

TRAVELS:

• X Axis: 900 mm
• Y Axis: 340 mm
• Z Axis: 120 mm

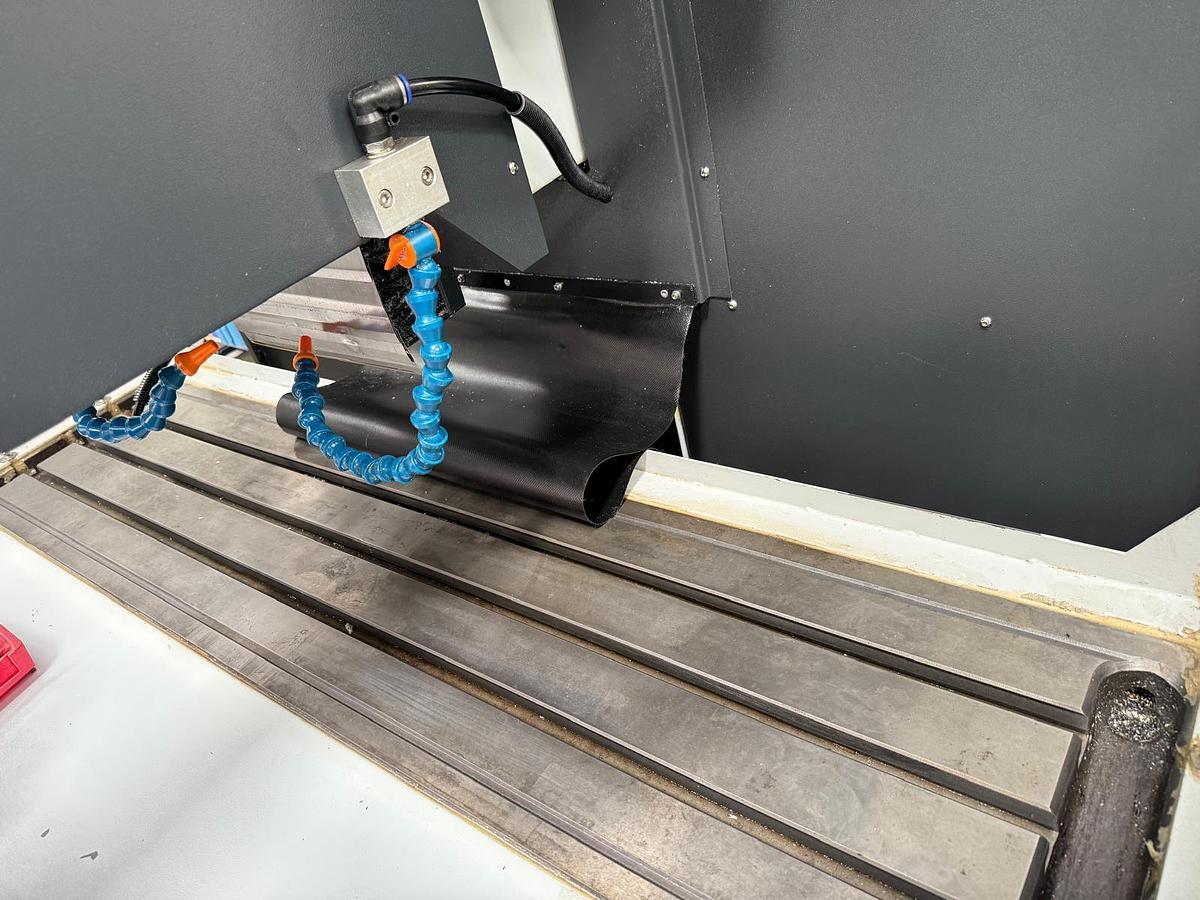

TABLE:

• Length: 1,470 mm
• Width: 320 mm
• Max Weight on Table: 220 kg

SPINDLE:

• Spindle Taper: BT40
• Spindle Speed: 50 - 5,000 rpm
• Spindle Power: 3.75 kW
• Drive System: Direct Drive

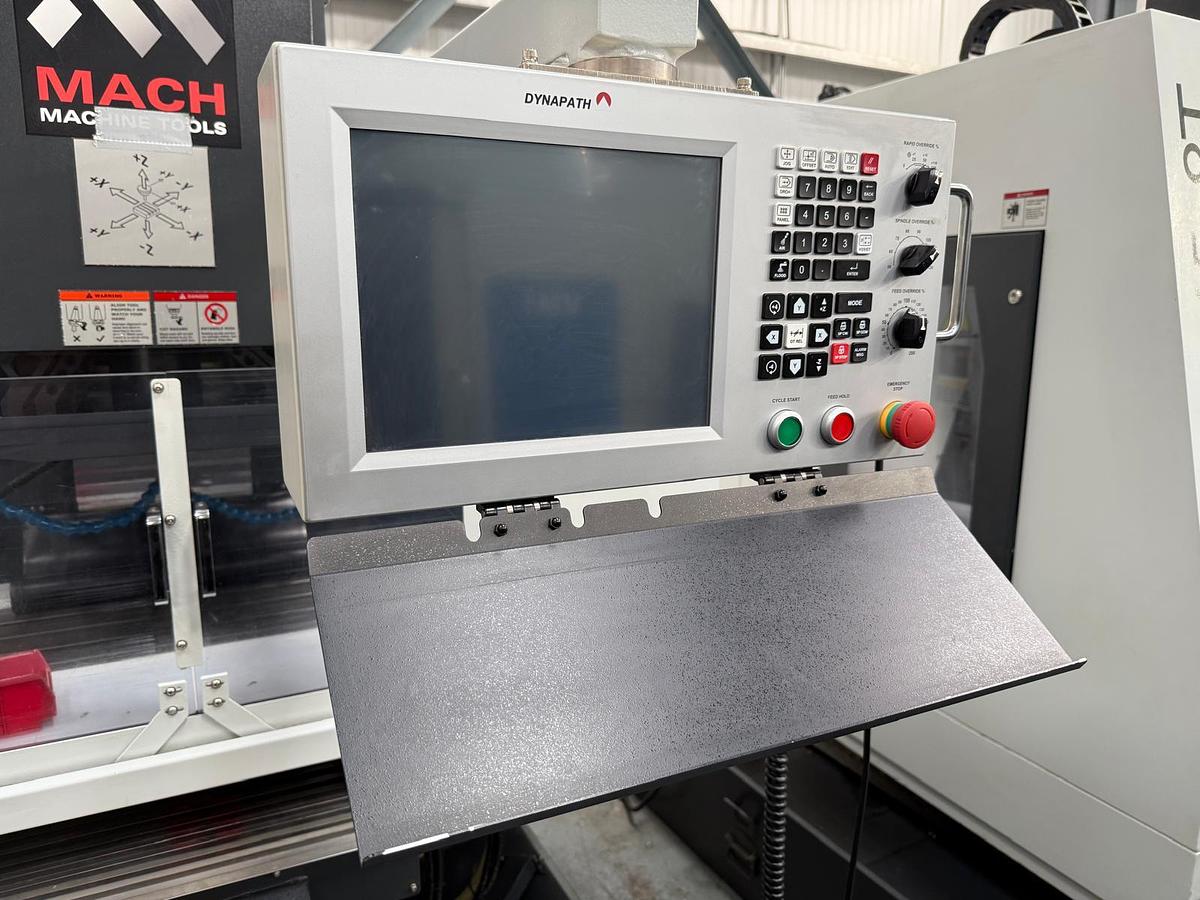

CONTROL:

• Type: DynaPath WinDelta
• User Interface: 12.1" LCD Touchscreen
• Axes: 3-Axis
• Memory: 8 GB
• Look Ahead: 1,000 Blocks
• Programming: Conversational, DXF & ISO/EIA G-Code
• Interfaces: USB, Ethernet & Wireless
• Built-in DFX Programme Editor

TOOL CHANGER:

• Type: Integrated
• Capacity: 4 Tool Positions
• Positioning: Around Spindle

AXIS DRIVE:

• X Axis: Direct Drive
• Y Axis: Direct Drive
• Z Axis: Direct Drive
• Drive System: Yaskawa

GENERAL:

• Year: 2022
• Condition: Used
• Operating Modes: Manual, Semi-Automatic & Fully Automatic
• Remote Service: DynaPath WiFi Remote 24/7 Support
• Application: Toolrooms & Machine Shops
