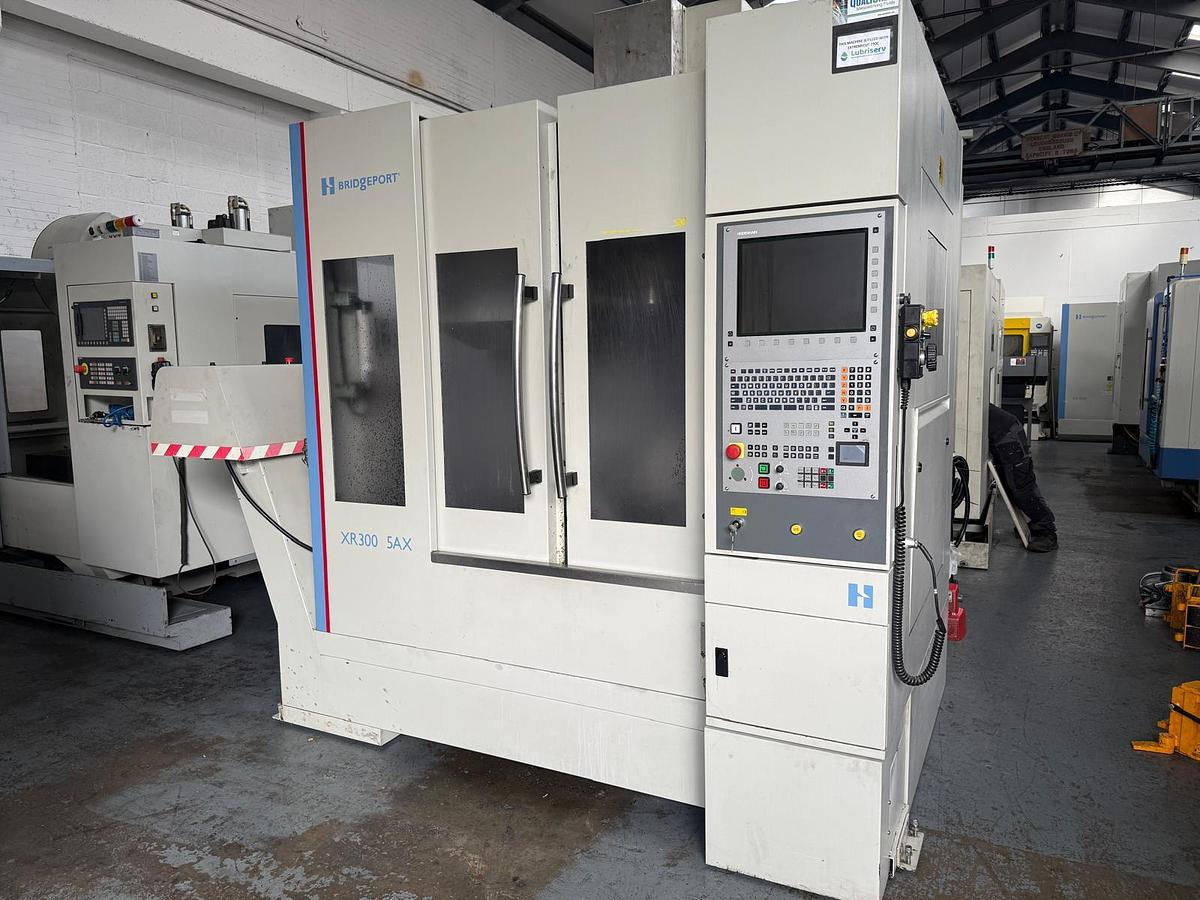

2011 Hardinge XR 300 5AX

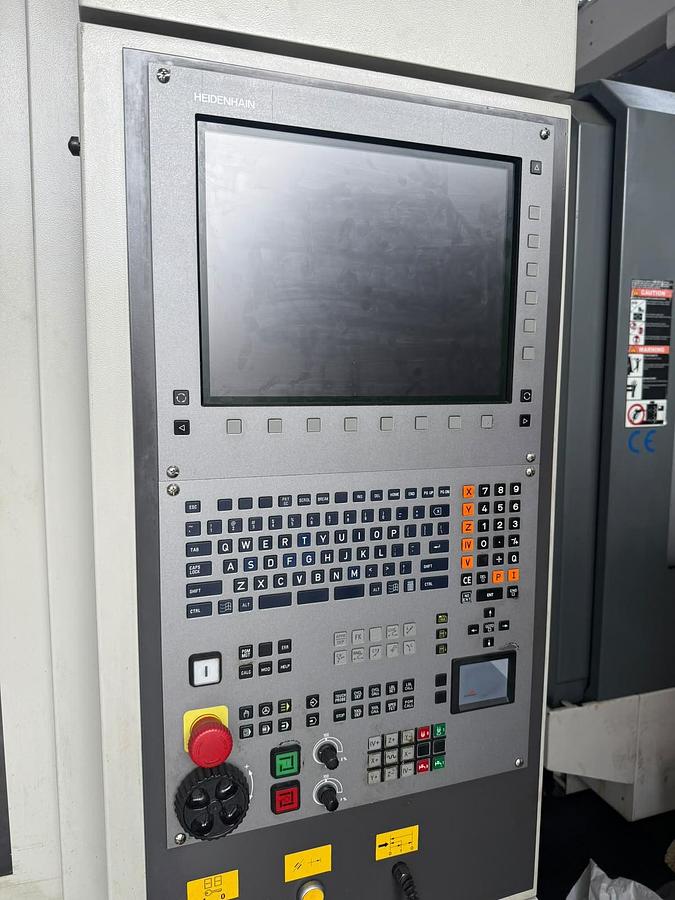

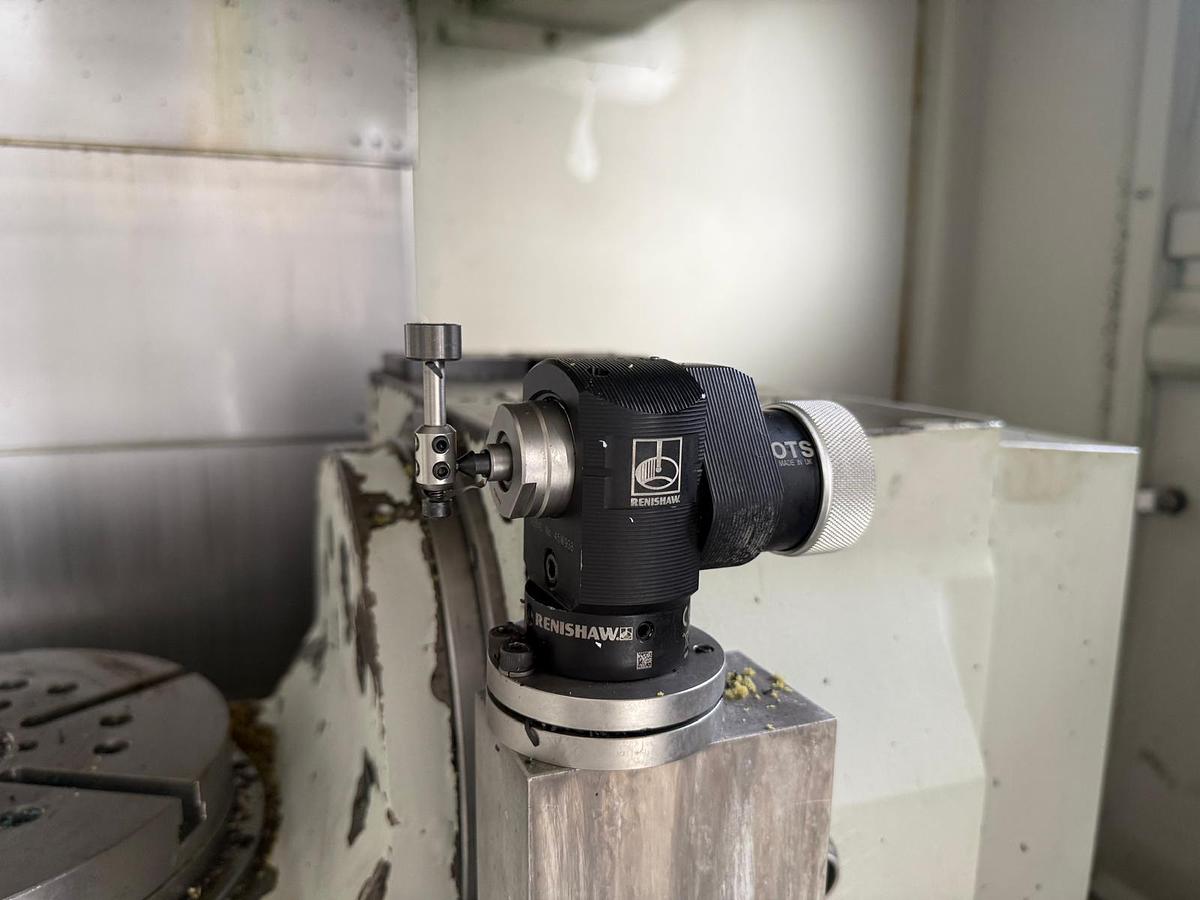

Used 2011 Hardinge Bridgeport XR300 5AX. Supplied with Heidenhain iTNC 530 Control, 12,000 RPM Spindle with Through Spindle Coolant, Renishaw probing, 30 Station ATC, Swarf Conveyor, Coolant Equipment & Manual Set.

SPECIFICATION:

TRAVELS:

X Axis 410 mm, Y Axis 610 mm, Z Axis 500 mm

A Axis +30° to -120°, C Axis Continuous 360°

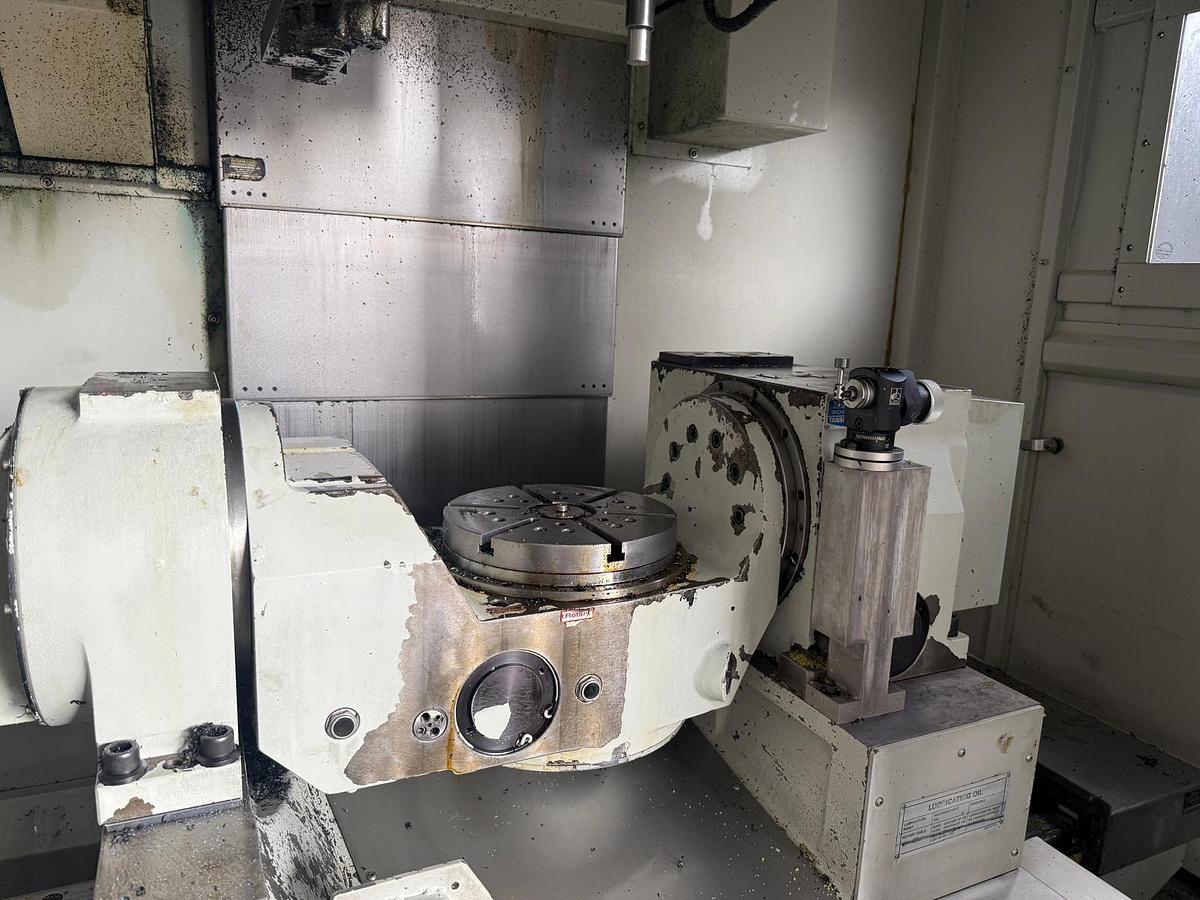

TABLE:

Diameter 300 mm

Max Swing Diameter 300 mm, Max Weight on Table (evenly distributed) 100 kg

SPINDLE:

Max Rating 25 kW (S6 40%), Max Speed 12,000 rpm, Max Torque 159.2 Nm, Taper BT 40

FEEDRATES:

Rapid and Jog (Max.) 36 m/min

Cutting Feed Rate (Max.) 20 m/min

Rotary Axis Speed 25 rpm

BALL SCREWS:

X & Y Axis 45 x 16 mm

Z Axis 45 x 12 mm

TOOL CHANGER:

Type Rapid ATC, Capacity 30

Max Tool Diameter 125 mm (adjacent pocket), 80 mm

Tool Length Max. 300 mm

Tool Weight Max. 7 kg

COOLANT & CHIP MANAGEMENT:

Swarf Conveyor, Coolant Capacity 355 L

Wash Down Standard, Wash Gun Standard, Cutter Air Blaster Standard

Through Spindle Coolant

Coolant Flow Rate at Cutter 160 L/min

Through Spindle Coolant Pressure 20 bar (Std)

Washdown 140 L/min

GENERALS:

Machine Dimensions (W x D) 2528 x 3000 mm

Air Required 4.9 cfm

Power Supply 25 kVA / 415 V / 3 Phase / 50 or 60 Hz
