2016 Doosan Lynx 220 LYSC
Sold
2016 Doosan Lynx 220 LYSC
Description

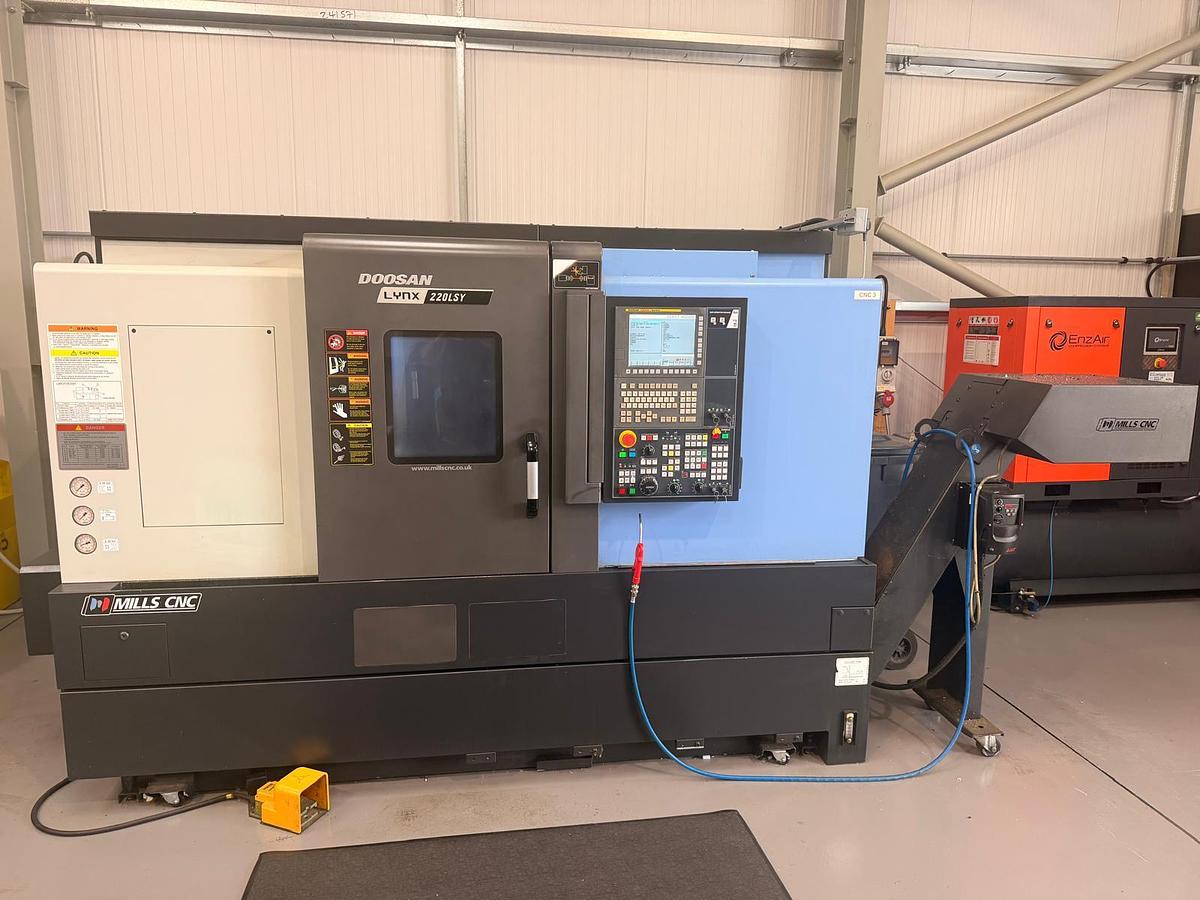

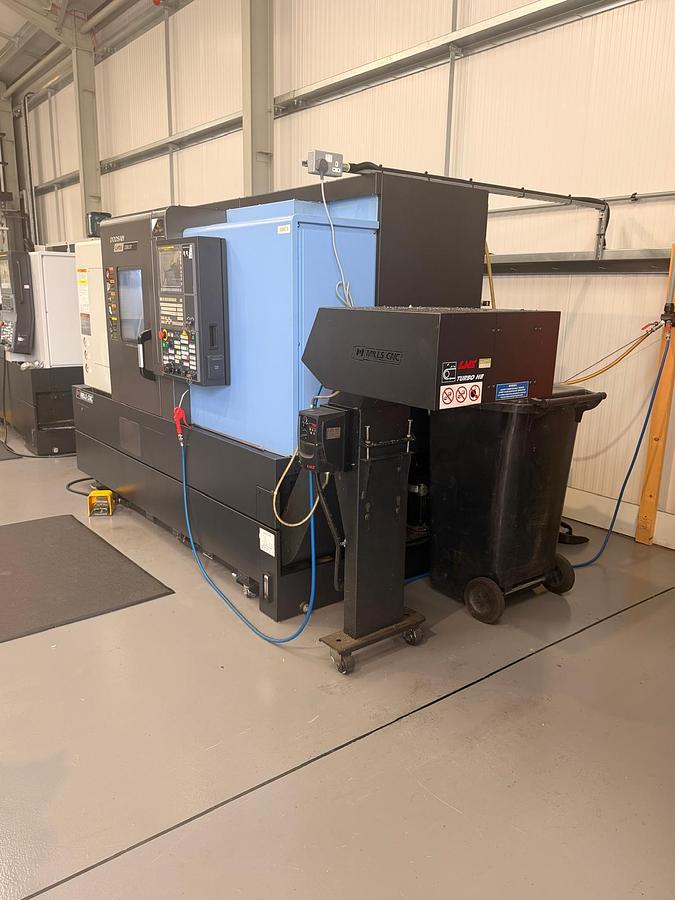

Used 2016 Doosan Lynx 220LYSC CNC Lathe – C & Y Axis, Milling & Sub-Spindle

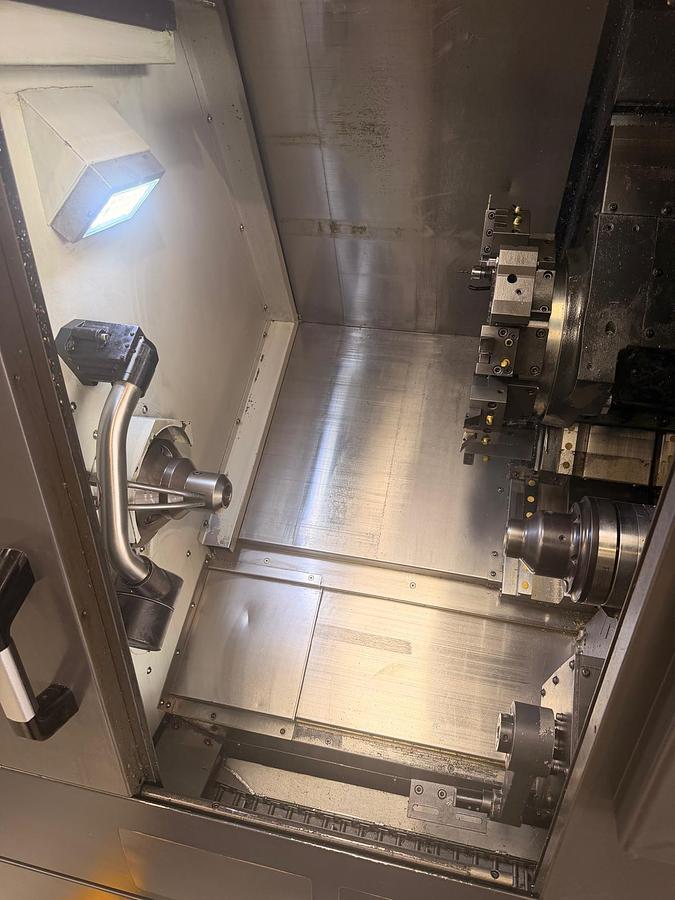

Supplied with Doosan FANUC-i control, C & Y axis, milling capability, sub-spindle, 24-station turret, tailstock, coolant, tool setter, parts catcher, and 3-jaw chuck.
SPECIFICATION:
CAPACITY:
- Max Turning Diameter: 300 mm
- Max Turning Length: 510 mm
- Swing Over Bed: 600 mm
- Max Bar Capacity: 65 mm
- Y Axis Travel: ±52.5 mm
MAIN SPINDLE:
- Max Spindle Speed: 4,500 rpm
- Spindle Motor: 15 kW
- C Axis Accuracy: 0.001°
- 3-Jaw Chuck
MILLING:
- Max Milling Speed: 6,000 rpm
- Y Axis Travel: ±52.5 mm
SUB-SPINDLE:
- Max Sub-Spindle Speed: 6,000 rpm
GENERAL:
- Control: Doosan FANUC-i
- Tailstock
- Coolant
- Tool Setter
- Parts Catcher
- Year of Construction: 2016
Specifications
| Manufacturer | Doosan |
| Model | Lynx 220 LYSC |
| Year | 2016 |
| Condition | Used |
| Serial Number | TBC |
| Stock Number | clu/OBO003 |
| Control | Fanuc |
| Spec | Spindle Bore 65 mm | Swing 600 mm |

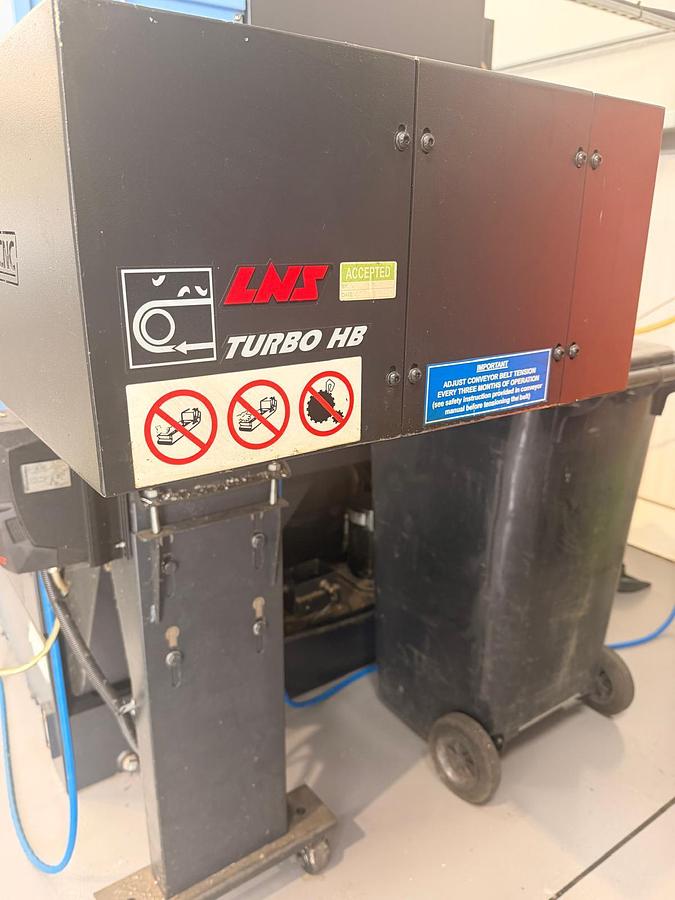

| Accessories | Sub spindle, tool setter, parts catcher & swarf conveyor |
