2005 Hardinge Talent 6-45

This Hardinge Talent 6-45 is a high-precision, slant-bed CNC turning centre built in 2005. It features a Fanuc Series Oi-TB control system and includes C-Axis, 5c Collect Chuck & driven tools. Please note there is no tailstock included.

Machine Specification:

CONTROL

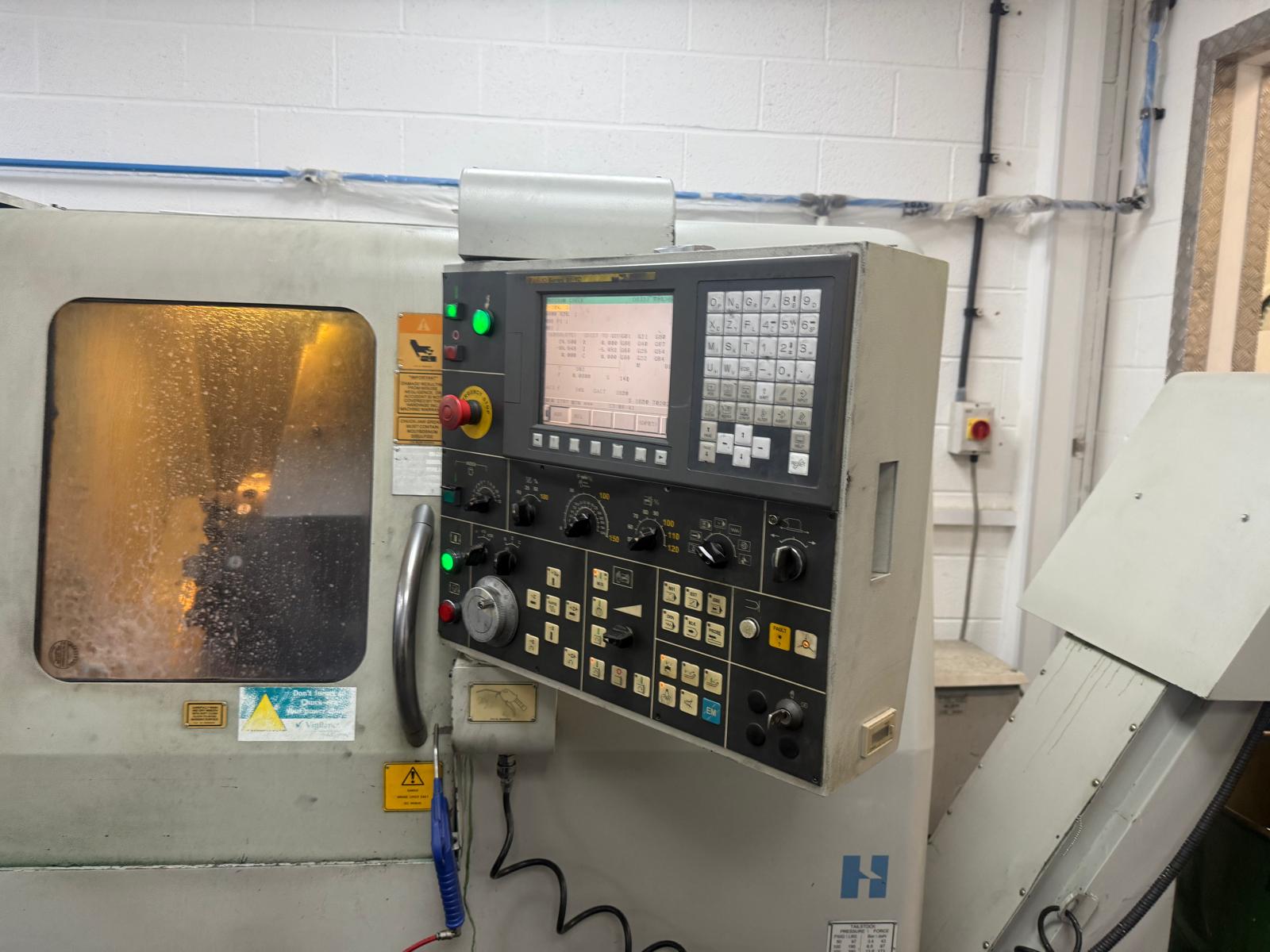

Fanuc Series Oi-TB Control

Networking Capabilities: Ethernet, USB, DNC

CAPACITY

Max bar capacity (with 16C collet adaptor): 45 mm

Spindle bore: 42 mm

Maximum swing over bed: 457 mm

Maximum turning diameter: 284 mm

Maximum turning length: 381 mm

Distance between centers: 381 mm

MAIN SPINDLE

Spindle speed maximum: 6,000 min⁻¹

Spindle motor power: 11.0 kW

Spindle taper: A2-5

TURRET

Tooling system: Block

Number of turret stations: 12

Number of live (rotating) tools: 12

FEED AXES

Travel (X axis): 228.6 mm

Travel (Z axis): 406.4 mm

ACCESSORIES & FEATURES

C-Axis & driven tools

MACHINE SIZE

Machine dimensions (L x W x H): 2,032 mm × 1,651 mm × 1,727.2 mm

• Machine weight: Approx. 2,800 kg
