Hurco VM10

Name of the machine: Hurco VM10

YOM: 2011

Stock number: cmu/0453

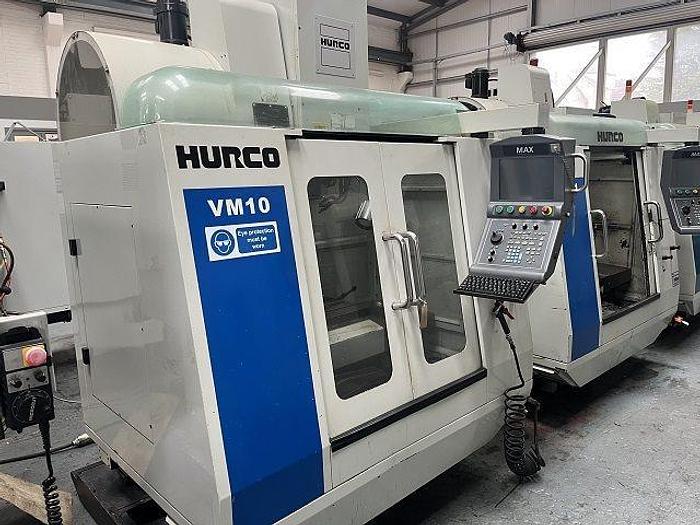

Used Hurco VM10 Vertical Machining Centre with WinMax control. Fitted with a 10,000 RPM spindle and 20 Tool Side Mounted Rapid ATC.

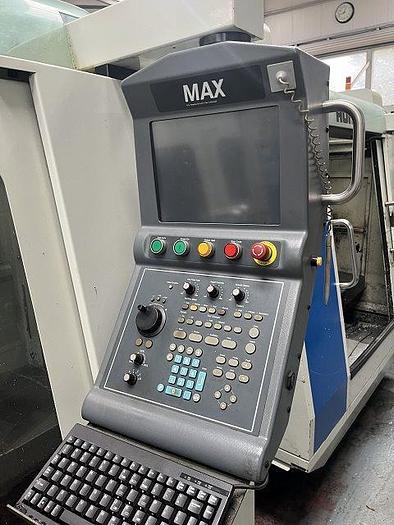

Hurco VM 10 with WinMax Control
10,000 RPM spindle, 20 tool ATC
660mm x 406mm X & Y movements
Table Working Surface 30" x 14" (762mm x 356mm)
Max Weight on Table 750 lbs (340Kgs)
T-Slots (spacing x width) 3 Slots
Spindle Taper ANSI # 40 Taper (CAT 40)
Max Spindle Speed 10,000 RPM
Peak Spindle Motor 15 HP
Max Spindle Motor Torque 54 @ 1,450 ft lbs @ RPM
Rapid Traverse X,Y,Z Axis 20 M/Min
Cutting Fee Rate 8M/Min
Number of Tools ATC 20 Side Mount rapid change CAT 40
Positioning/Repeatability ±0.0002" / 0.0001"
Voltage 208-240 VAC/60HZ
Power Rating 13 KVA


Fishponds, Bristol


Shipping Details:
A VAT invoice will be supplied within 48 hours of the sale end date. Delivery off loading and siting are all available with this machine at extra cost.

Enquire or call for details: 0117 965 2706
